Configurator - Product Configurator Pro

by ACRIS E-Commerce GmbH

Rating: no rating ( write a review )

Downloads: <10

The Acris product configurator enables customers to customise products step by step. Options and dependencies ensure a simple and logical selection process.

Annually €20.42* /month €490.00 * €245.00* /year after first year €490.00* /year Promotion valid until 30 June 2026 23:59 58.33% discount This is the combination of a 41.67% promotional discount and a 16.67% annual discount.

Monthly €24.50* /month for 6 months, then €49.00* /month Cancelable monthly Promotion valid until 30 June 2026 23:59 50% discount

Compatible with:

6.5.0.0 - 6.7.8.2

Includes:

Free trial month

The subscription starts with a free trial month during which it can be canceled at any time.

All updates

During the subscription all released updates are included for free

Support from the Extension Partner

In case you have any questions or problems with your extension you can always ask the Extension Partner for help during the subscription.

Description

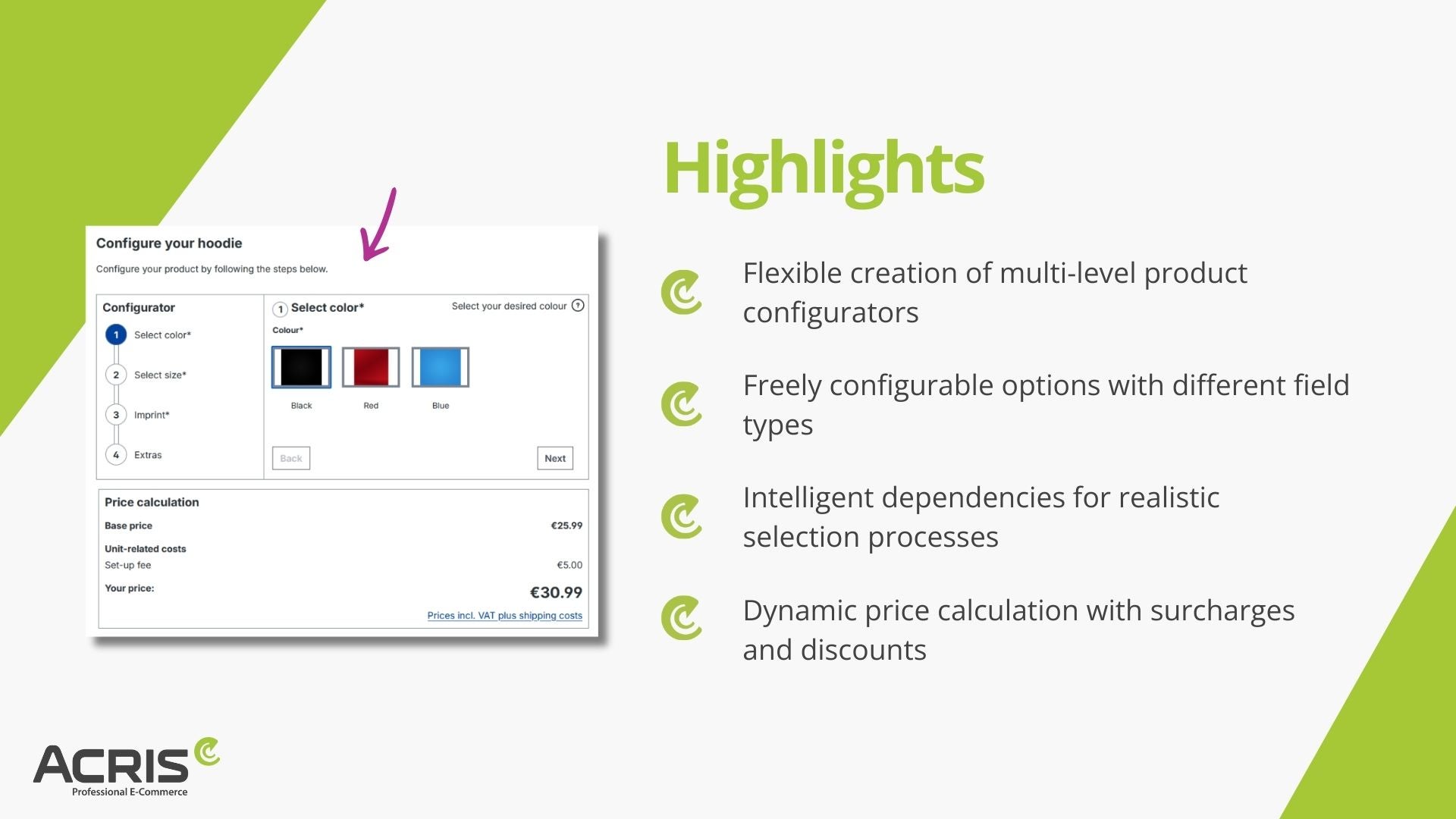

Highlights

Flexible creation of multi-level product configurators
Freely configurable options with different field types
Intelligent dependencies for realistic selection processes
Dynamic price calculation with surcharges and discounts

Features

Creation and management of any number of configurators in the admin area
Assignment to products, dynamic product groups or by configurator ID
Option restrictions based on other selection fields
Individual field types such as single selection, checkbox or text field
Various layout options for optimal display

Seamless integration into product page, shopping basket and checkout
Visibility of the configurator can be controlled according to customers or rules
Individual tooltips and help texts for better user guidance

Show more Show less

About the Extension

Purpose of the plugin

By default, Shopware offers only limited options for individual product configuration. Complex selection processes, dependent options or step-by-step user guidance are difficult to implement without additional extensions. With the Acris Product Configurator, products can be configured flexibly and user-friendly. Customers put together their desired product step by step, while shop operators retain full control over options, layout and logic.

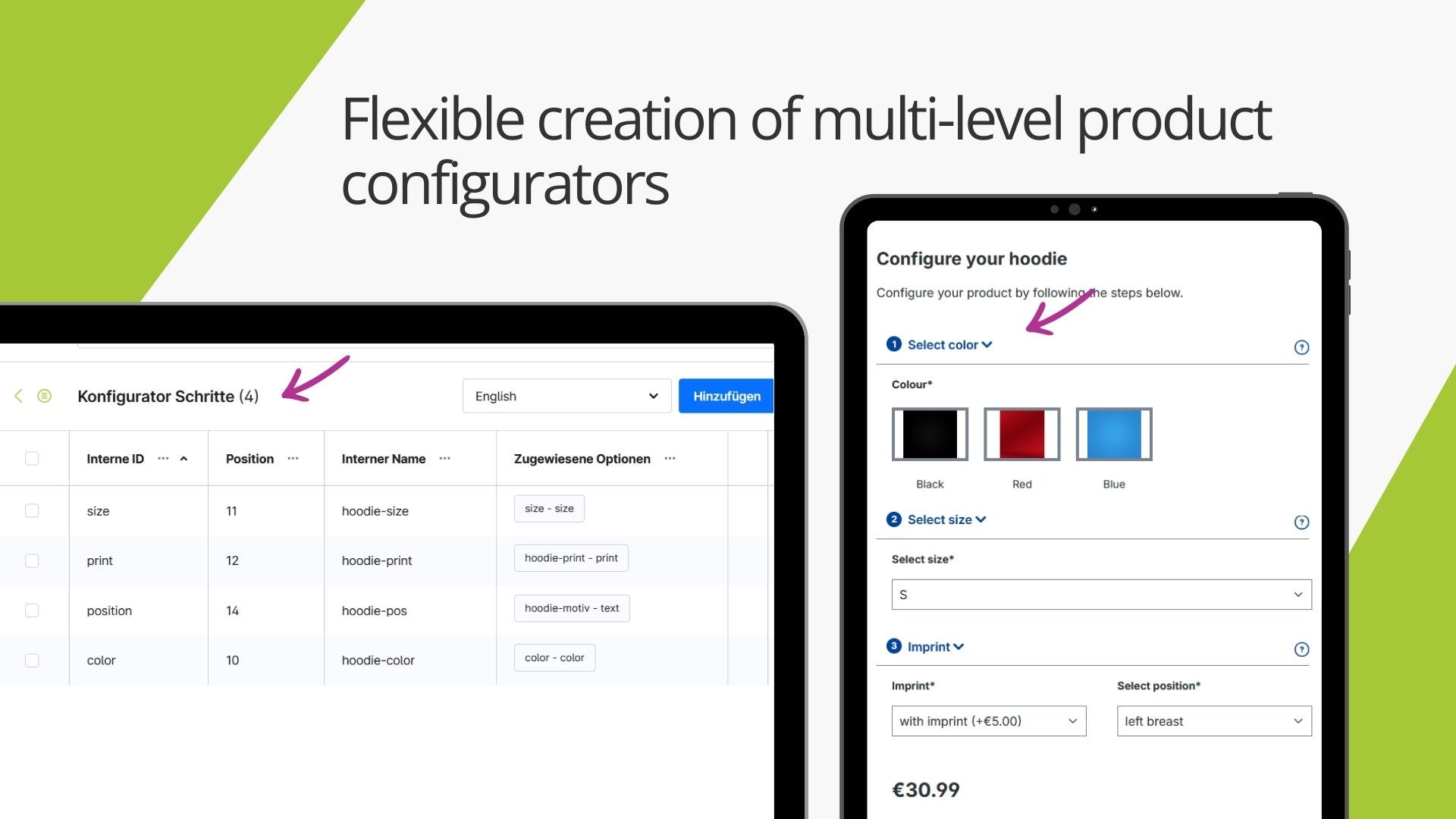

Multi-level product
Products can be divided into several clear steps, e.g. colour, size, features or extras. Customers are guided through the configuration step by step and can keep track of their selection at all times.

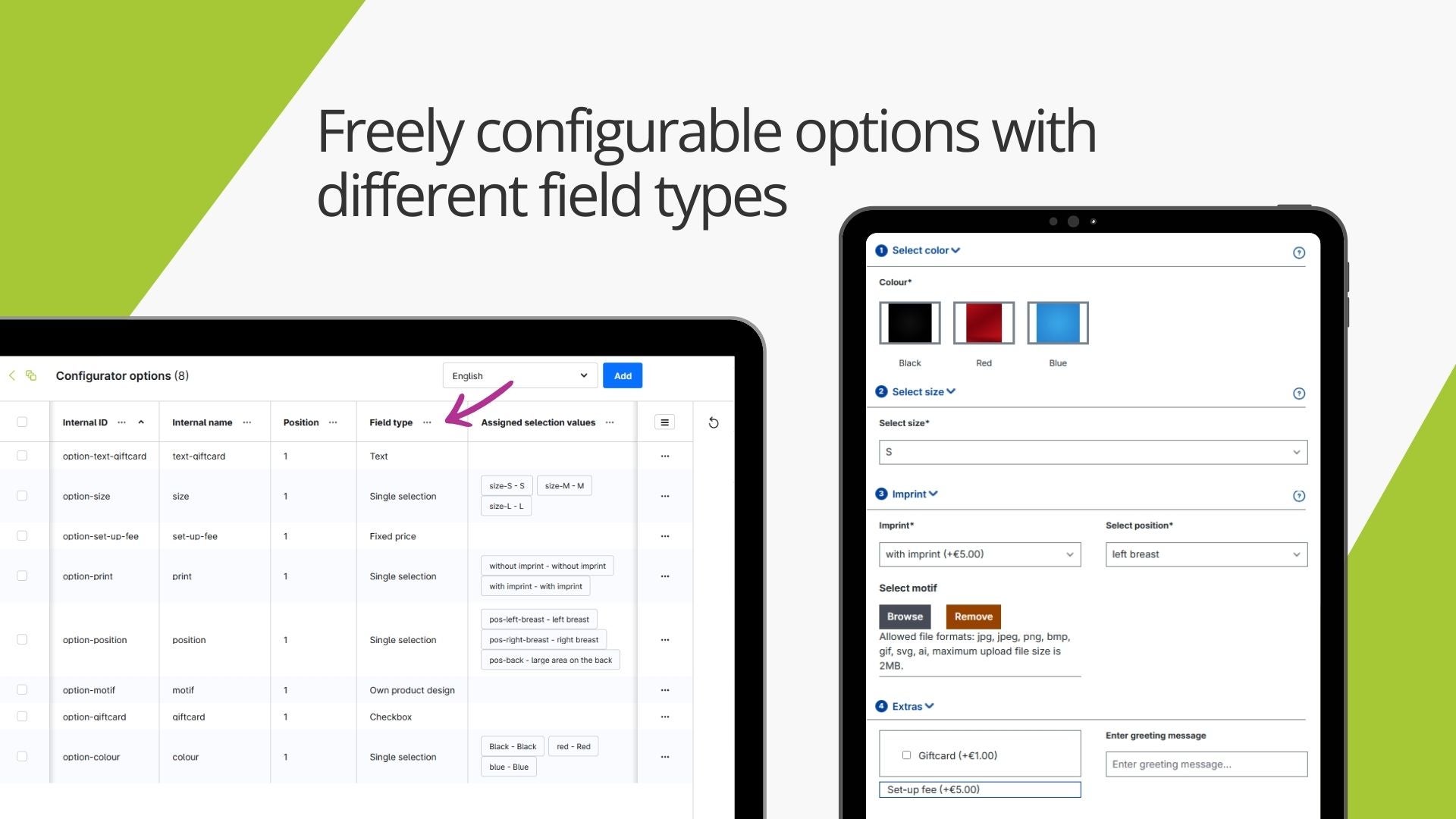

Freely configurable options with different field
Individual options can be created for each step – as a single selection, checkbox, text field or other field types. This allows both simple and complex product configurations to be mapped flexibly.

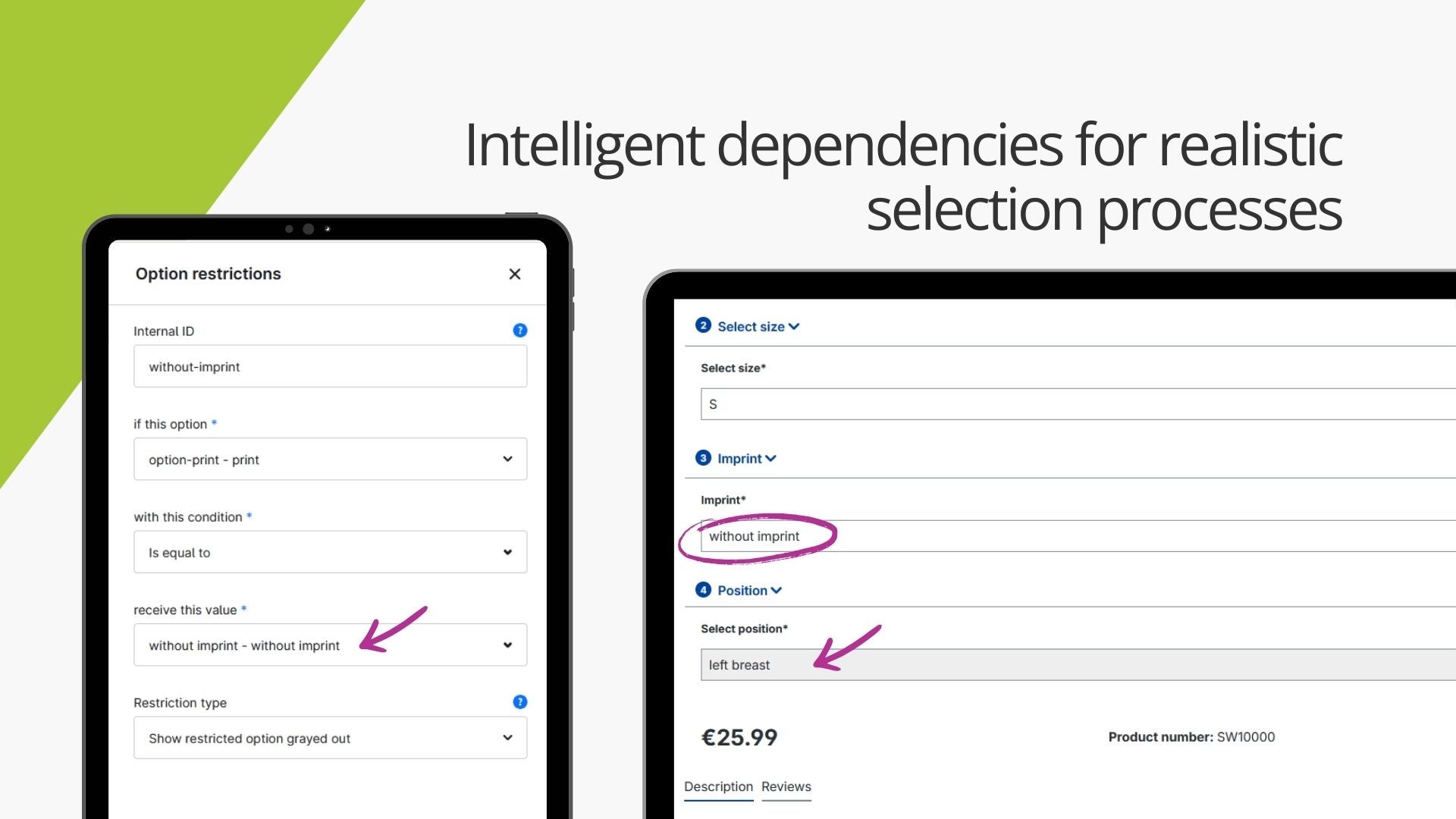

Intelligent dependencies for realistic selection
Options can be automatically shown, hidden or blocked depending on previous selections. This means that customers only see options that really go together – for realistic and error-free configurations.

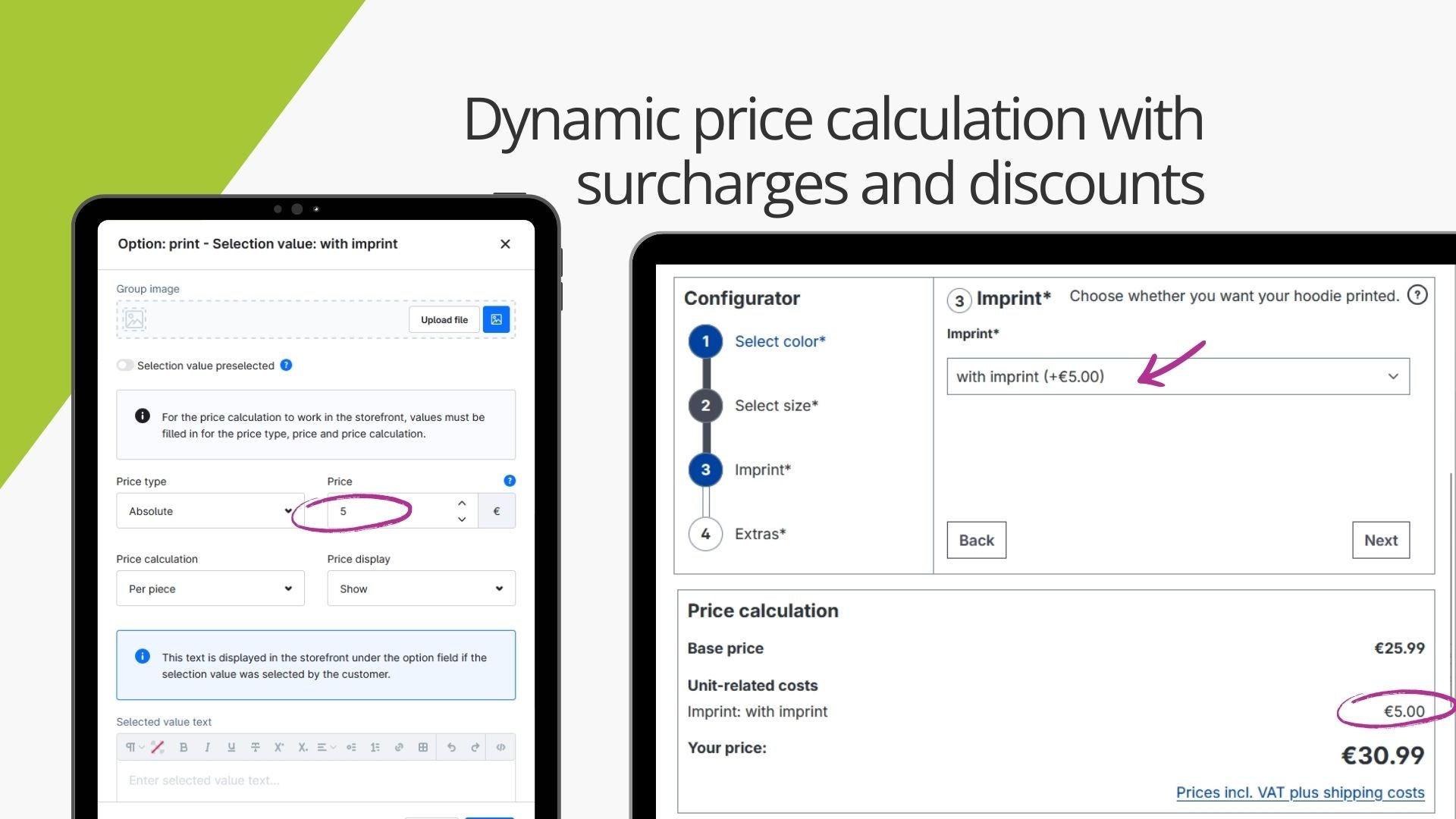

Dynamic price calculation
Price changes can be defined as absolute or percentage amounts and calculated either once or per item. The final price is automatically updated as soon as the customer changes their selection.
Flexible layout options
Several layout variants are available, e.g. prominent, compact or as a step-by-step view. The display can be individually adapted to the design of the shop, including tooltips, help texts and custom icons.

Details

Available: English, German
Latest update: 19 March 2026
Publication date: 23 March 2026
Version: 6.2.1
Category: Product Configuration

Resources

Reviews (0)

Write a review

If you downloaded this extension you can write a review in the Shopware Account.

Write a review

No reviews found.

About the Extension Partner

ACRIS E-Commerce GmbH

See all extensions

Partner Status

Shopware
Bronze Partner
Shopware
Premium Extension Partner

Details

Ø-Rating: 5

Average rating of 5 out of 5 stars
Partner since: 2015
Extensions: 187
Certifications: Certifications

Support

Based in: Austria
Speaks: German, English
Response time: Very quickly

Shopware 6 certified

Installation

Open Plugin Manager via Settings > System > Plugins.
Upload, install and activate the plugin.

Plugin configuration

Extensions > My Extensions > Product Configurator > Configure

Configurator settings

Layout options for the configurator
Choose between different display types (prominent layout, simple layout, compact layout, step-by-step layout)
Display options
Choose where the configurator is displayed on the product detail page.
Starting price for the configurator calculation
Choose between list price and retail price
Layout options for surcharges
Choose whether surcharges are displayed in brackets or without
Quantity of configurator products can be changed
If active, customers can adjust product quantities
Products can also be ordered without configuration
Wenn aktiv, ist der Kauf ohne vollständige Konfiguration möglich
Product configuration can be edited
If active, customers can change their selection in the shopping basket

Edit icon design
Settings for the design of the edit icon (colours & hover)
Upload your own icons for tooltips and help texts

Off-canvas settings

Display base price of configured product
Show or hide base price
Display unit price of configured product
Show or hide unit price

Shopping basket settings

Display of configuration in checkout process
Display configuration directly or collapsed

Image upload for configurator

Selection of possible file formats
Maximum upload size for images can be specified

Clean up saved configurations

Saved configurations are deleted after the maximum age has expired.

Display similar configurations

Show or hide link for similar configurations in the off-canvas shopping cart
When the link is clicked, the user is redirected to the corresponding product. All configurator settings for the product are loaded in the off-canvas and pre-filled in the current configurator. This link is only displayed if there is a configurator for the product.
Off-canvas link text
Show or hide link for similar configurations in the shopping basket overview

Import settings

Media path
Defines the storage location for imported media

Create configurator

Settings > Extensions > Configurator > Configurator > Add

Internal name
Technical name of the configurator (only visible to the admin).
Title for display
Heading displayed above the configurator in the front end
Display title
Activates or deactivates the display of the title in the front end.
Active
Switches the configurator on or off.
Configurator height
Sets the height of the configurator area on the product page.
Products can be ordered without configuration
Determines whether customers can purchase the product even without completing the configuration.
Assignment of steps
Here, the previously created configurator steps (e.g. colour, size, options) are assigned to the configurator.

Assignment
The configurator can be linked to products in three different ways:

Via configurator ID
The internal ID of the configurator corresponds to the ID of the additional field on the product.
Via dynamic product groups
The configurator is automatically assigned to all products that correspond to a specific product group.
Via direct product assignment
Individual products are selected manually and linked to the configurator.

Restriction

Rule for configurators
Here you can define rules for when the configurator is displayed.
Customers of the configurator
Determines for which customers the configurator is visible.

Create configurator steps

Settings > Extensions > Configurator > Configurator steps > Add

Internal name
Technical name of the step (only visible in the admin area).
Title
Name of the step in the front end (e.g. ‘Select colour’).
Position
Order of the step in the configurator.
Show step selection
Displays the step in the selection area of the configurator.
Show step in off-canvas shopping cart
Also displays the selected option in the shopping cart.
Do not fill in for similar configurations
Prevents automatic preselection for similar products.
Tooltip
Brief additional information that is displayed when the mouse hovers over the item.
Helptext
Detailed explanation that is displayed during the step.
Configurator
Select the configurator to which this step should belong.

Create configurator options

Settings > Extensions > Configurator > Configurator options > Add

Internal name
Technical name of the option (only visible in the admin area).
Title
Name of the option in the front end
Position
Order of the option within the step
Option image size
Defines the size of the option image.
Option image position
Determines where the image is displayed.
Display for variant products
The variant characteristics settings (OR/AND link) can be used to control the display of configurator options for variant products. If nothing is selected for the variant characteristics, the configurator option is always displayed.
Tooltip
Brief additional information that is displayed when the mouse pointer is moved over the element.
Help text
More detailed explanation that is displayed directly next to the option.
Field type
Possible field types include: single selection, checkbox, text field, etc.

Create selection values

Settings > Extensions > Configurator > Selection values > Add

Internal ID
Unique technical identifier of the selection value.
Variant characteristics (OR link)
The value is displayed if at least one of the selected variants applies.
Variant characteristics (AND link)
The value is only displayed if all selected variants apply.
Selection value type
Defines the type of selection value (product or selection value).
Selection value
Name of the value in the front end
Position
Order of the selection value within the option.
Configurator option
Selection of the option to which this value belongs
Preselected selection value
Specifies whether this value is preselected by default.
Price type
Percentage or absolute
Price
Amount of the price change
Price calculation
Determines how the price is applied (per item or one-time).
Price display
Controls whether the price is displayed in the front end.
Selection value text
This text is displayed below the option field as soon as the customer selects the selection value.

Create restrictions

Settings > Extensions > Configurator > Restrictions > Add

Internal ID
Unique technical identifier for the restriction.
This option should be blocked
Select the option to be restricted
if this option
Select the field that serves as the condition
with this condition
Specify how the value is checked (e.g. is equal to, is not equal to)
contains this value
Select a specific selection value
Restriction type
Determines how the option is restricted (grey out option or hide completely)
