Novastrix Variant Display

by Novastrix UG

Rating: no rating ( write a review )

Downloads: <10

Makes the Shopware variant picker readable on products with property groups: four status colours show at a glance which options are available, combinable or sold out.

Annually €9.90* /month €178.80 * €118.80* /year 33.56% discount In comparison to the regular monthly price

Monthly €14.90* /month Cancelable monthly

Compatible with:

6.6.0.0 - 6.7.13.0

Includes:

Free trial month

The subscription starts with a free trial month during which it can be canceled at any time.

All updates

During the subscription all released updates are included for free

Support from the Extension Partner

In case you have any questions or problems with your extension you can always ask the Extension Partner for help during the subscription.

Description

Highlights

4-colour status coding in the configurator instead of Shopware's "everything greyed out"
In-stock badge per option, visible before the customer clicks
Parent stock & price aggregated from variants automatically (optional, every 15 min)
Global ordering from the property catalogue enforceable for all products
Colour and text customisation without a theme recompile

Features

4 status colours (Green, Amber, Amber-grey dashed, Blue) in the variant configurator
In-stock / Out-of-stock badge per option, separately toggleable per state
"Depleted" status: dimmed-dashed for options sold out everywhere
Stock-agnostic combinable: Green stays stable even when the current variant is sold out
Supports all rendering styles: text, colour swatches, image thumbnails, dropdown select

Configurable threshold — styling only applies above N property groups (default 3)
Auto-hide for groups with only 1 remaining option after Shopware's cleanup
Availability legend and hover tooltips, both toggleable
Variants visible individually in shop search (instead of collapsed to the parent)
Make parent products additionally visible in search and suggest
Ordering enforceable from the global property catalogue (Catalogues → Properties → Position)
Parent stock = sum of all variant stocks (opt-in, every 15 minutes)
Parent price per currency = cheapest variant price (gross + net, opt-in)
16 colour variables + all texts adjustable, server-side validated, no theme recompile
Shopware 6.6 + 6.7, HTTP-cache compatible, no additional DB queries

Show more Show less

About the Extension

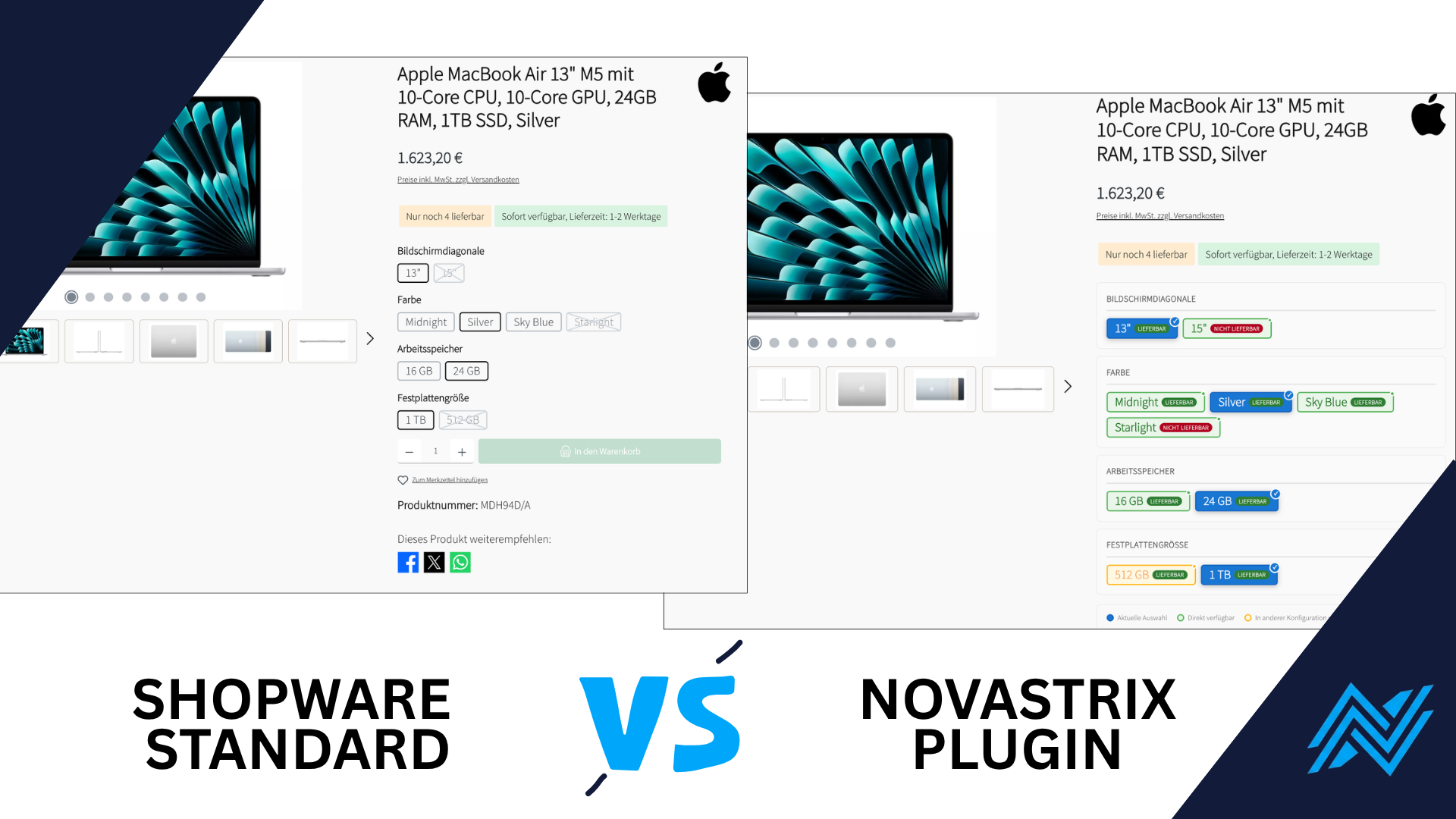

Variant selection your customers understand at a glance

The moment a product has three or more property groups — colour, size, material, pattern — Shopware's default picker becomes unreadable: every non-combinable option looks identical, slightly dimmed and struck through. The customer clicks around blindly.

Novastrix Variant Display replaces that flat presentation with a clear 4-state colour system and shows for each option whether it is currently in stock — before the customer clicks it.

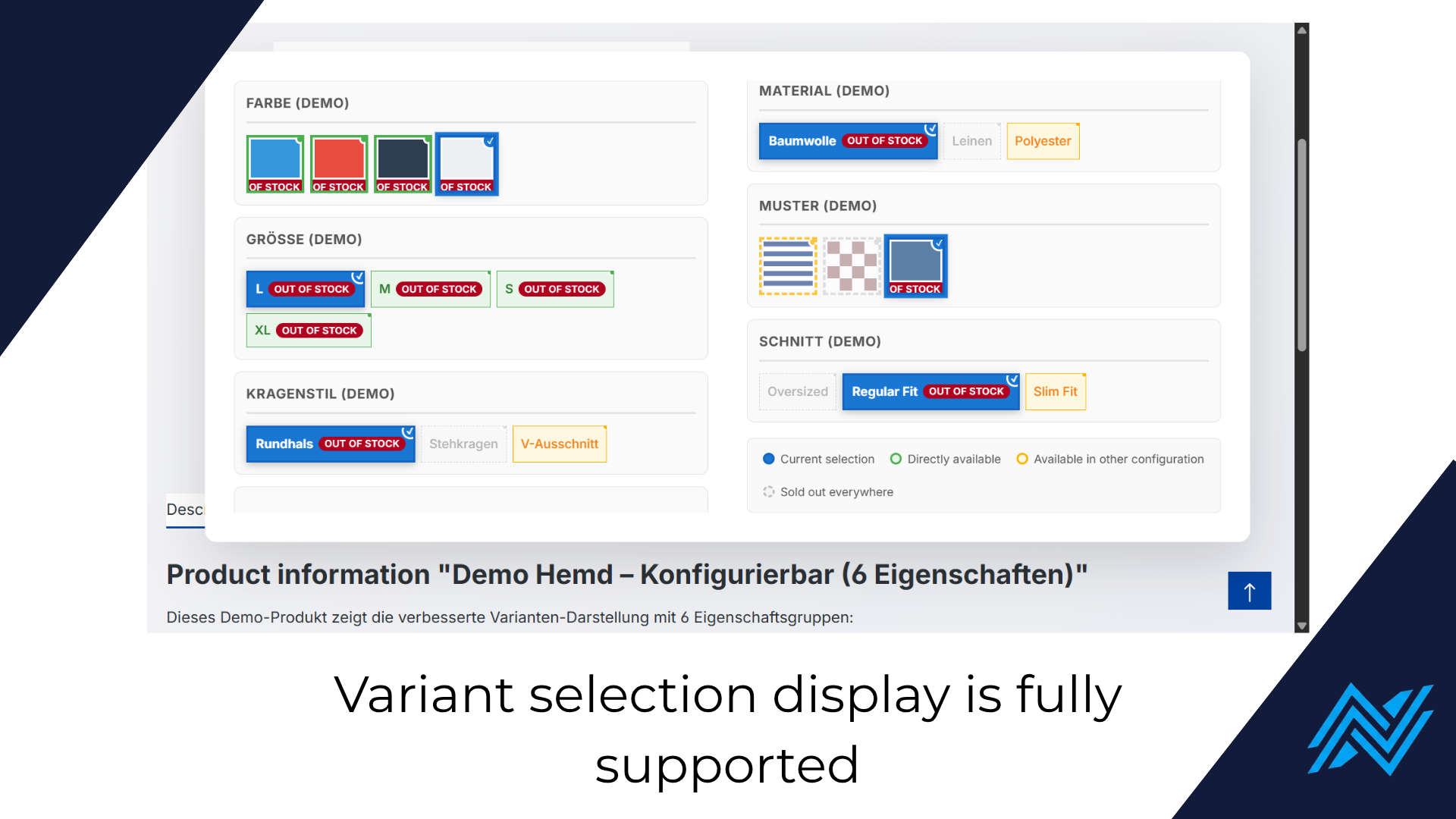

The 4-state colour system

Green — directly available with the current selection
Amber — available in another configuration (clickable, tooltip explains the switch)
Amber-grey dashed — combination sold out everywhere (dead end recognisable upfront)
Blue — currently selected

Optionally, an In stock / Out of stock badge complements the colour coding — orthogonal to combinability, so colour-blind customers can read availability at a glance too.

Stable display even on sold-out variants

A common UX break in Shopware: when the customer lands on a sold-out variant, the picker collapses to „all amber". With the toggle Keep green status even on out-of-stock variants (default on) the status differentiation is preserved — the customer still sees which configurations are in stock.

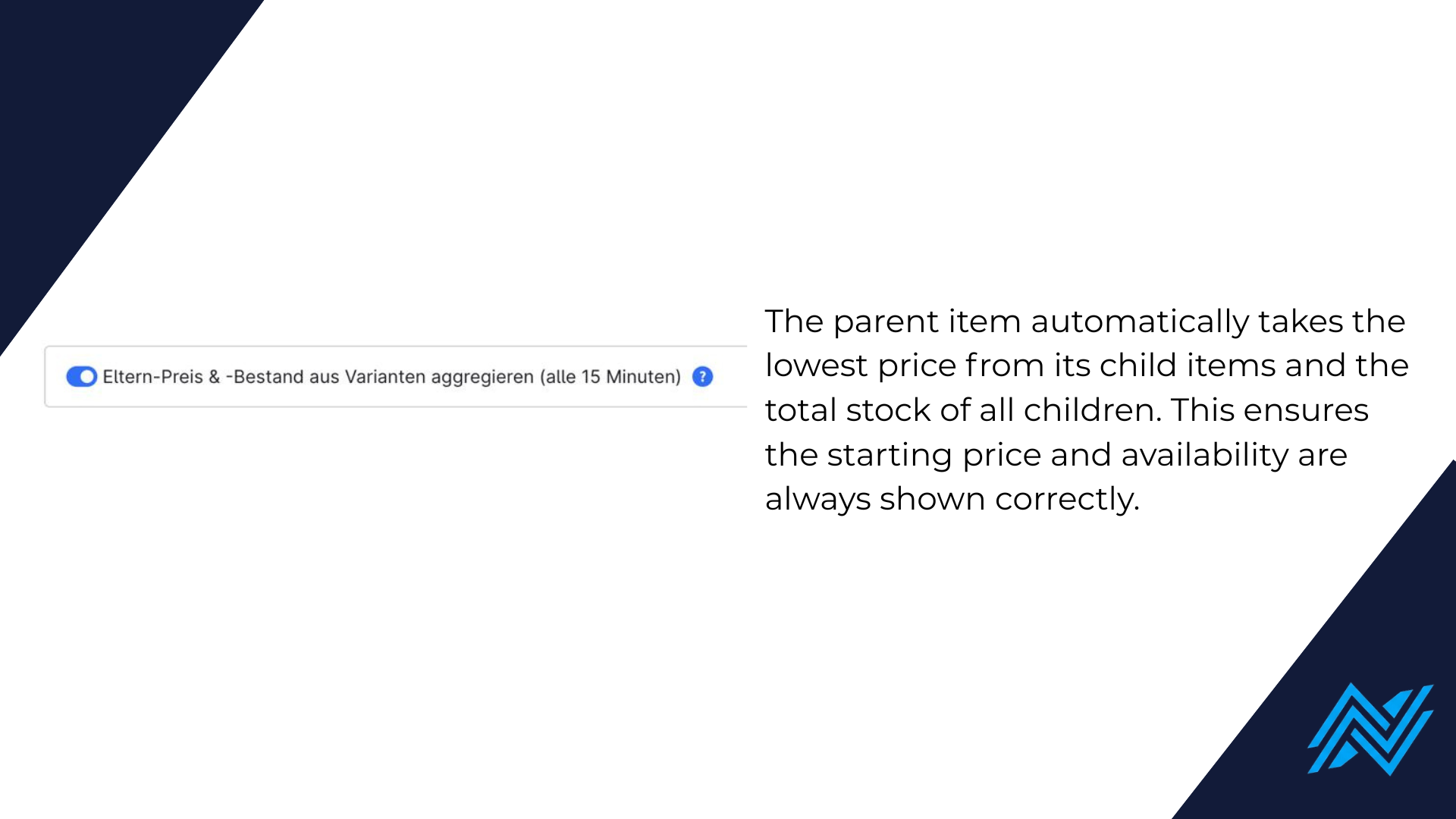

Automatic parent aggregation (optional)

An opt-in background job runs every 15 minutes and sets, per parent product:

Stock = sum of all variant stocks
Price per currency = cheapest variant price (gross + net)

Storefront listings always show the real total stock and the lowest available price across all variants — no manual maintenance on the parent product. Multiple currencies are aggregated independently.

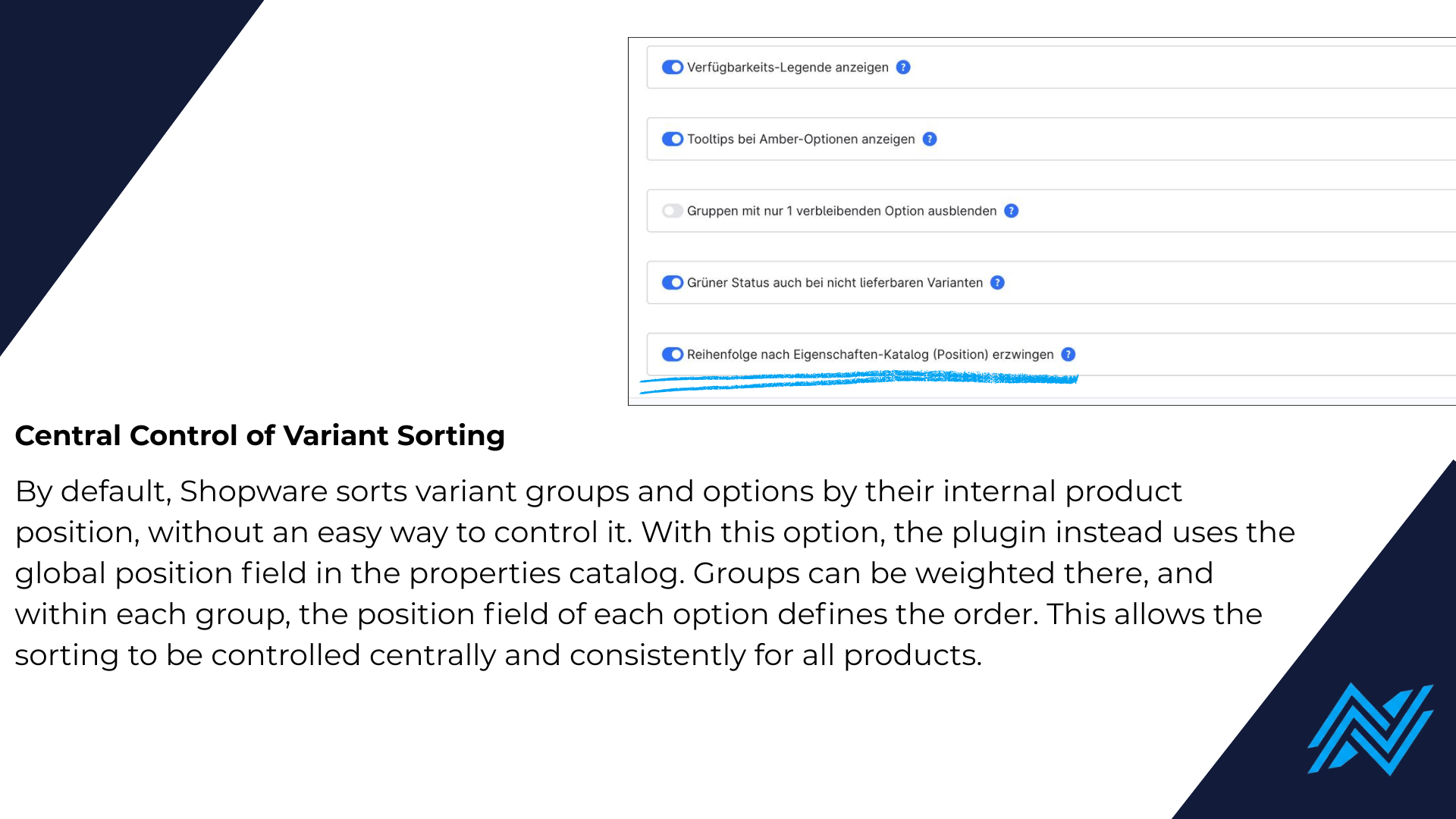

One source of truth for ordering

With Enforce property catalogue order, groups and options are sorted strictly by the global catalogue position (Catalogues → Properties → Position). One central sorting change applies immediately to all products that use the group — no more per-product updates.

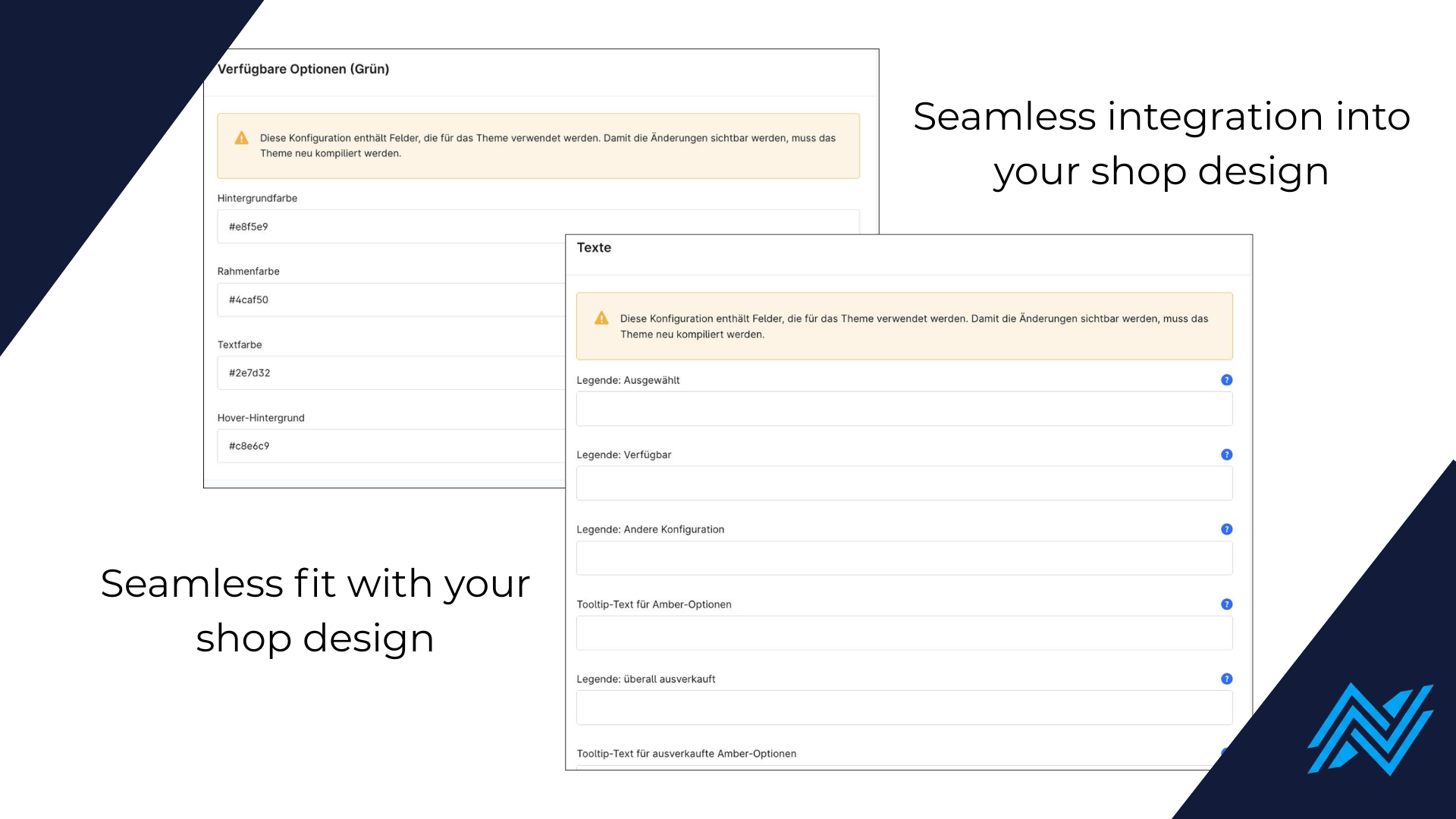

Branding without a theme recompile

All 16 colour variables (green, amber, blue states, group cards, legend) and every legend and tooltip text are configurable in the plugin admin. Changes take effect after a cache clear — no theme recompile required. Every colour is validated server-side (hex, rgb()/rgba(), hsl()/hsla(), CSS keywords).

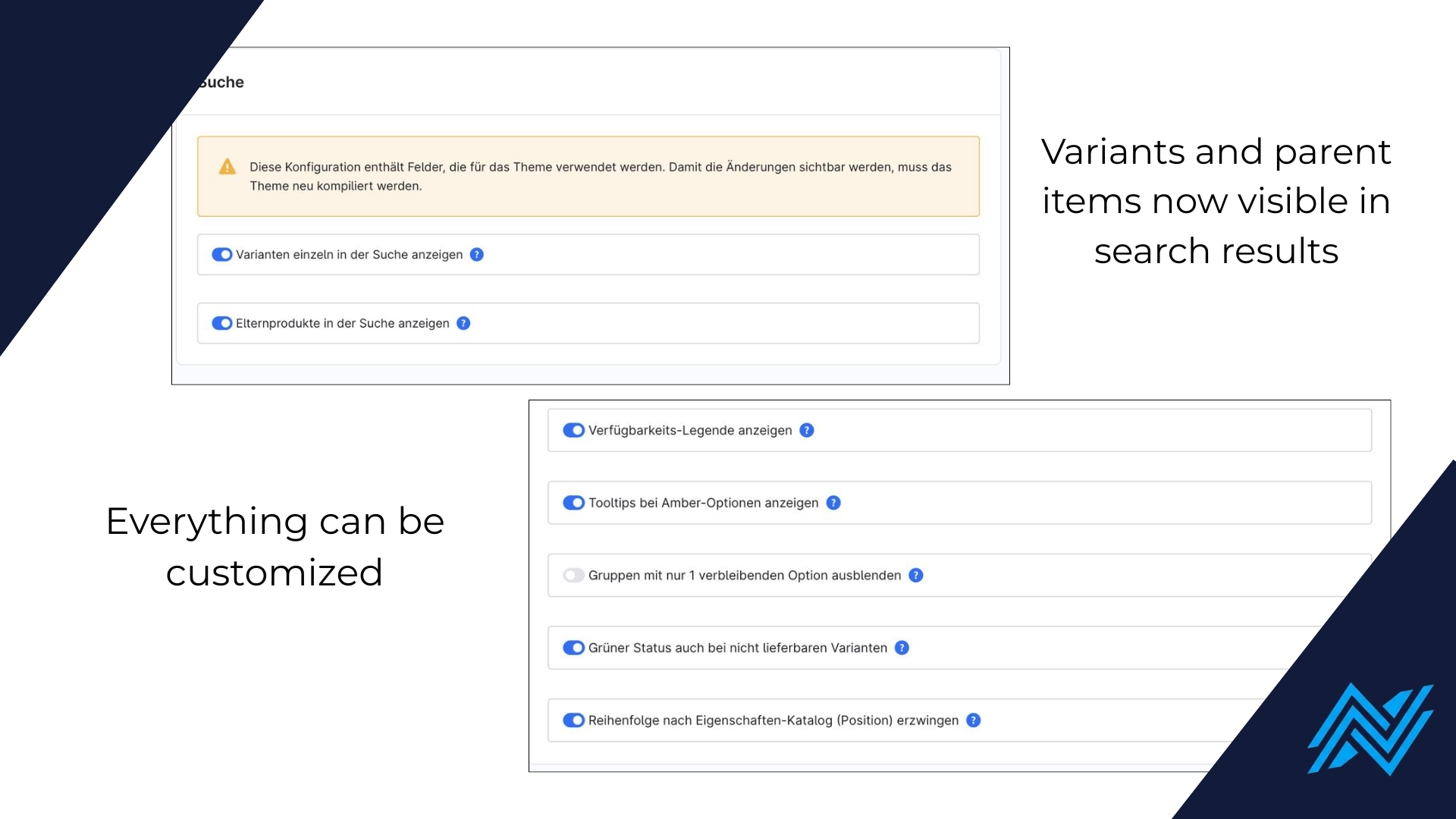

Search visibility

Two optional toggles make variants and parent products visible in shop search and suggest — category listings stay untouched so normal navigation is not flooded.

Technical specs

Shopware 6.6 and 6.7
No additional DB queries on the product page — uses data Shopware already loads
HTTP-cache compatible (no user-specific content)
Full snippet translations DE + EN

Variant selection your customers understand at a glance

Novastrix Variant Display replaces that flat presentation with a clear 4-state colour system and shows for each option whether it is currently in stock — before the customer clicks it.

The 4-state colour system

Green — directly available with the current selection
Amber — available in another configuration (clickable, tooltip explains the switch)
Amber-grey dashed — combination sold out everywhere (dead end recognisable upfront)
Blue — currently selected

Optionally, an In stock / Out of stock badge complements the colour coding — orthogonal to combinability, so colour-blind customers can read availability at a glance too.

Stable display even on sold-out variants

Automatic parent aggregation (optional)

An opt-in background job runs every 15 minutes and sets, per parent product:

Stock = sum of all variant stocks
Price per currency = cheapest variant price (gross + net)

One source of truth for ordering

Branding without a theme recompile

Search visibility

Two optional toggles make variants and parent products visible in shop search and suggest — category listings stay untouched so normal navigation is not flooded.

Technical specs

Shopware 6.6 and 6.7
No additional DB queries on the product page — uses data Shopware already loads
HTTP-cache compatible (no user-specific content)
Full snippet translations DE + EN

Details

Available: English, German
Latest update: 5 August 2026
Publication date: 6 August 2026
Version: 1.0.2
Category: Detail Page

Resources

Reviews (0)

Write a review

If you downloaded this extension you can write a review in the Shopware Account.

Write a review

No reviews found.

About the Extension Partner

Novastrix UG

See all extensions

Partner Status

Shopware
Extension Partner

Details

Partner since: 2026
Extensions: 1

Support

Based in: Germany
Speaks: German, English
Response time: Very quickly

German

Frontend:: Go to demo

Admin:: Go to demo
Name:: admin
Password:: shopware

1.0.2 6.6.0.0 - 6.7.13.0 20 July 2026

Internal code-quality and maintainability improvements; minimum PHP version (8.1) declared, more reliable storefront translations.
Verified compatibility with the latest Shopware 6.7 releases. Normalised the storefront constraint to >=6.6.0,<6.8.0 (three-segment).
No functional changes.

1.0.1 6.6.0.0 - 6.7.13.0 18 June 2026

Compatibility

Verified for the latest Shopware 6.7 releases.
Supported version range is now explicit: Shopware 6.6 and 6.7.

1.0.0 6.6.0.0 - 6.7.13.0 20 July 2026

First public release of Novastrix Variant Display — enhanced variant configurator UX for Shopware 6 products with multiple property groups.

3-state colour system for every option: Green = directly available with current selection, Amber = available in another configuration (still clickable), Blue = currently selected.
Separate styling for text, colour swatch, media thumbnail, and select dropdown.
Status badge (dot / checkmark) on each option as a colour-blind-friendly secondary signal.
Hover tooltip on amber options explaining the selection will switch configuration.
Availability legend below the configurator (toggleable).
Auto-hide groups that contain only one remaining option after Shopware removed the non-existing ones.
Minimum property-group threshold (default 3): products with fewer groups keep Shopware's default styling.
Per-option "In stock" / "Out of stock" badge layered on top of the colour coding, so customers see availability before they click.
Independent toggles for badge visibility on selected, available, and other-configuration options.
Overridable badge labels and background colours.
"Depleted" 4th visual state — amber options whose combinations are sold out everywhere render dimmed and dashed. Stays clickable, but signals the dead end up front.
"Keep green state on out-of-stock variants" (stockAgnosticCombinable, default on): keeps the 3-state visualisation stable even when the customer is viewing an out-of-stock variant. Can be switched off per sales channel.
"Force property-catalog position for sort order" (sortByCatalogPosition, default on): groups and options are sorted strictly by the global property-catalog position (Catalogues → Properties → Position). A single catalogue change re-orders every product that uses the affected group.
Show variants individually in search — each variant appears as its own search result instead of being collapsed into the parent.
Show parent products in search — parents (products with variants) can appear alongside their variants in search and suggest.
Affects search and suggest only; category listings stay unchanged.
Opt-in scheduled background job sets every parent product's stock to the sum of all variant stocks and copies the cheapest gross/net variant price per currency onto the parent.
Storefront listings then always show the real total stock and the lowest available price across all variants — no manual upkeep of the parent record required.
Currencies are aggregated independently (per-currency cheapest child wins). Variants without their own price (inherited) are skipped during price aggregation.
Default off, so existing shops are never silently overwritten. Toggle: "Aggregate parent price & stock from variants (every 15 minutes)" (enableParentAggregation).
All 16 colour variables (green/amber/blue states, group cards, legend) configurable in the plugin admin.
All legend and tooltip labels overridable from the admin; falls back to snippet translations when left empty.
Colour changes apply without a theme recompile — a plain cache clear is enough.
Every colour value is validated server-side before hitting the stylesheet (only hex, rgb()/rgba(), hsl()/hsla() with numeric arguments, and CSS colour keywords accepted).
Full German and English snippet translations.
Shopware 6.6 and 6.7.
No additional database queries on the product page — the plugin reuses data Shopware has already loaded.
HTTP-cache compatible (no user-specific content).
