Set configurator

by swkweb

Rating: 5.0

Downloads: 264

Comfortable management of dynamic product sets, i.e. bundles or fixed parts lists with Shopware variant support. The pricing of the set components can be managed via formulas.

Annually €41.58* /month €588.00 * €499.00* /year 15.14% discount In comparison to the regular monthly price

Monthly €36.75* /month for 6 months, then €49.00* /month Cancelable monthly Promotion valid until 6 December 2024 23:59 25% discount

Compatible with:

6.4.0.0 - 6.6.9.0

Includes:

Free trial month

The subscription starts with a free trial month during which it can be canceled at any time.

All updates

During the subscription all released updates are included for free

Support from the Extension Partner

In case you have any questions or problems with your extension you can always ask the Extension Partner for help during the subscription.

German

Frontend:: Go to demo

Admin:: Go to demo
Name:: testzugang
Password:: testzugang

English

Frontend:: Go to demo

Admin:: Go to demo
Name:: testzugang
Password:: testzugang

tl;dr

Navigate in the administration to "Catalogues -> Product Sets -> Add Set"
Give the set a name. Create the desired slots in the "Slots" tab
Assign products as options to the slots and configure the relevant options if needed
If your product uses a shopping experiences layout, you need a custom layout. If you do not have one already duplicate the default product layout, and either configure the buy-box to display the set configurator or add the set configurator as separate element from the commerce category. For products with no assigned layout the configurator will be displayed in the buy-box

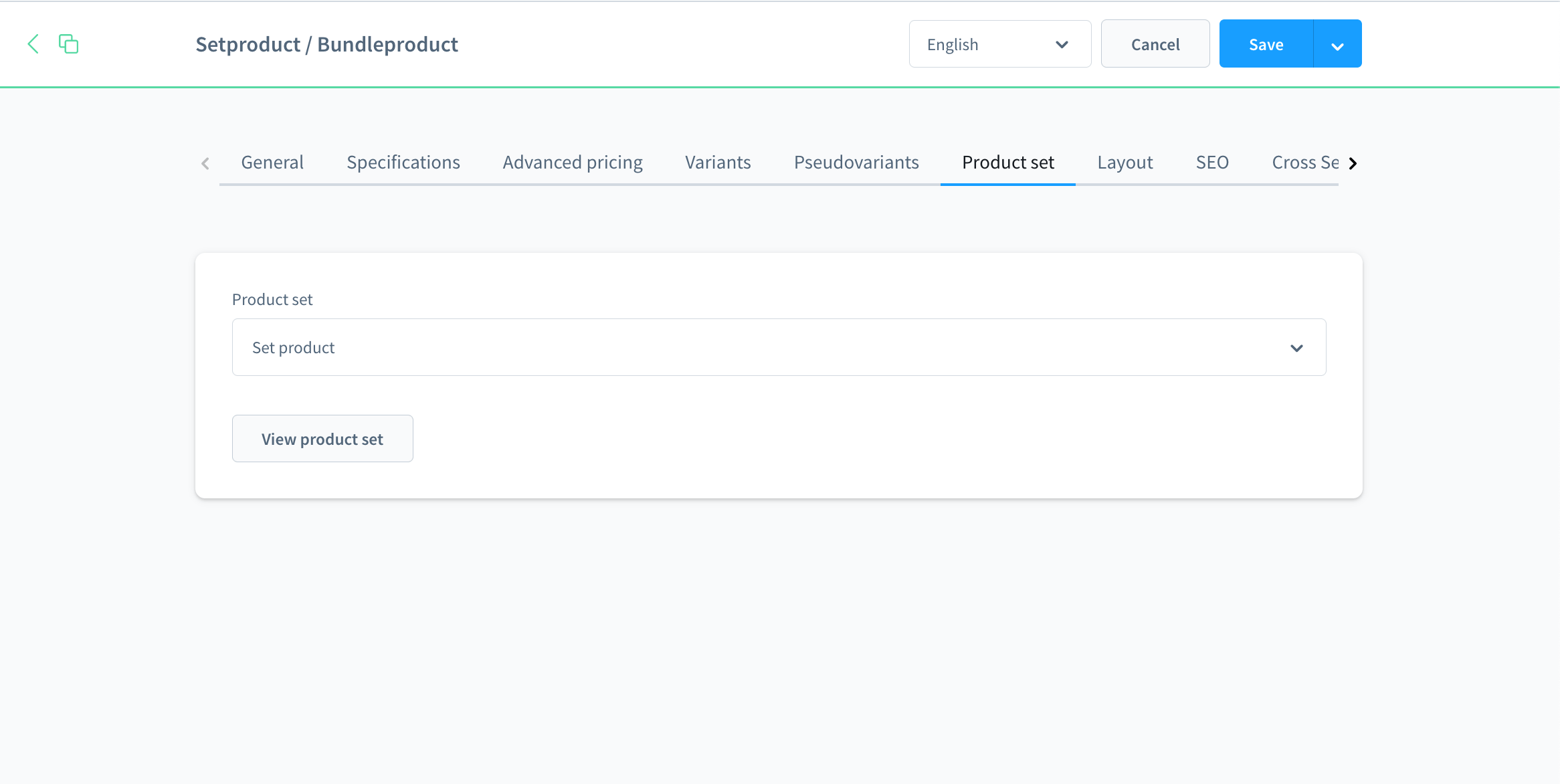

Assign the set configurator to a product and check out the product in the storefront

Create a set

Navigate in the administration to "Catalogues -> Product Sets"
Create a new set product using the blue button "Add Set" in the upper right corner

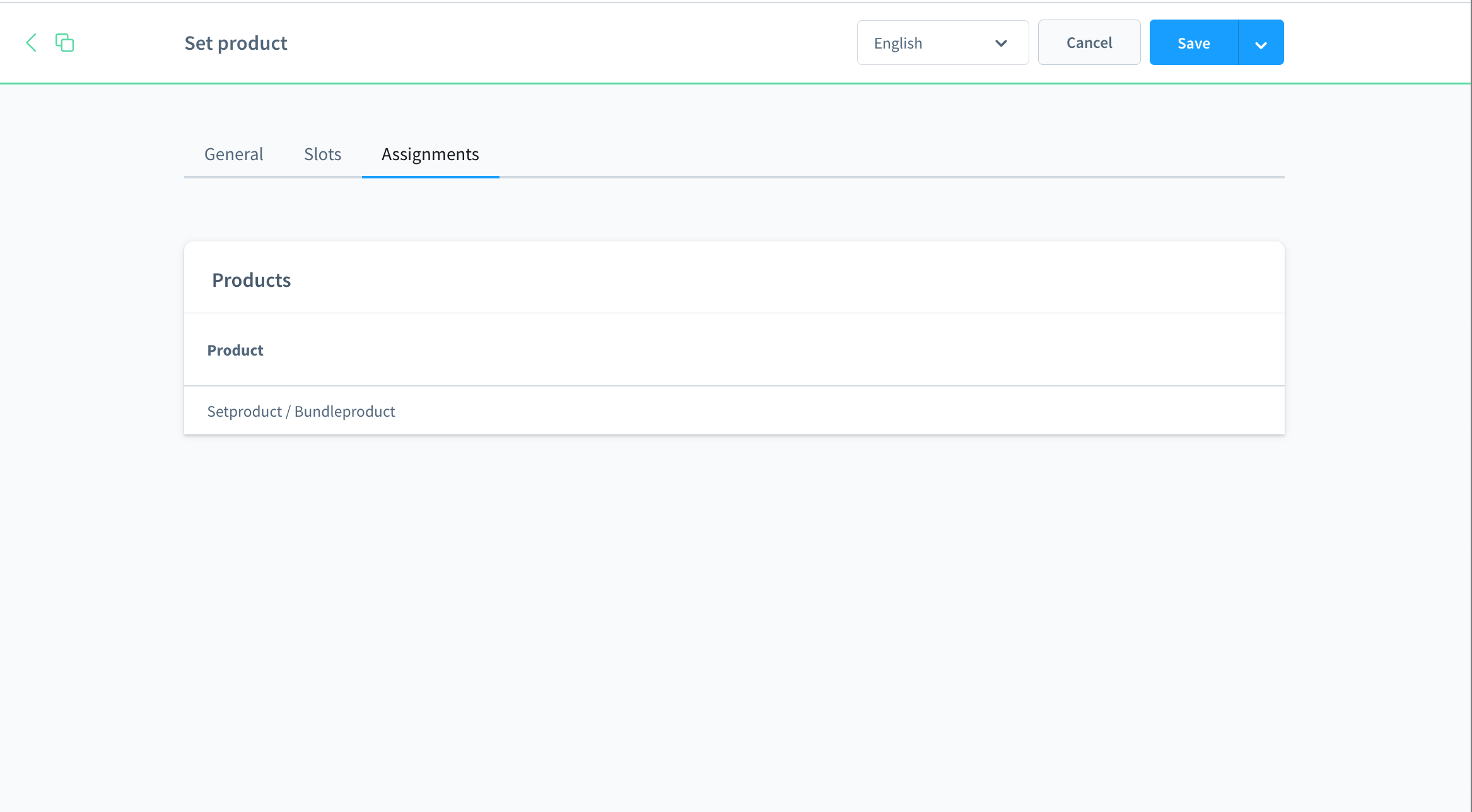

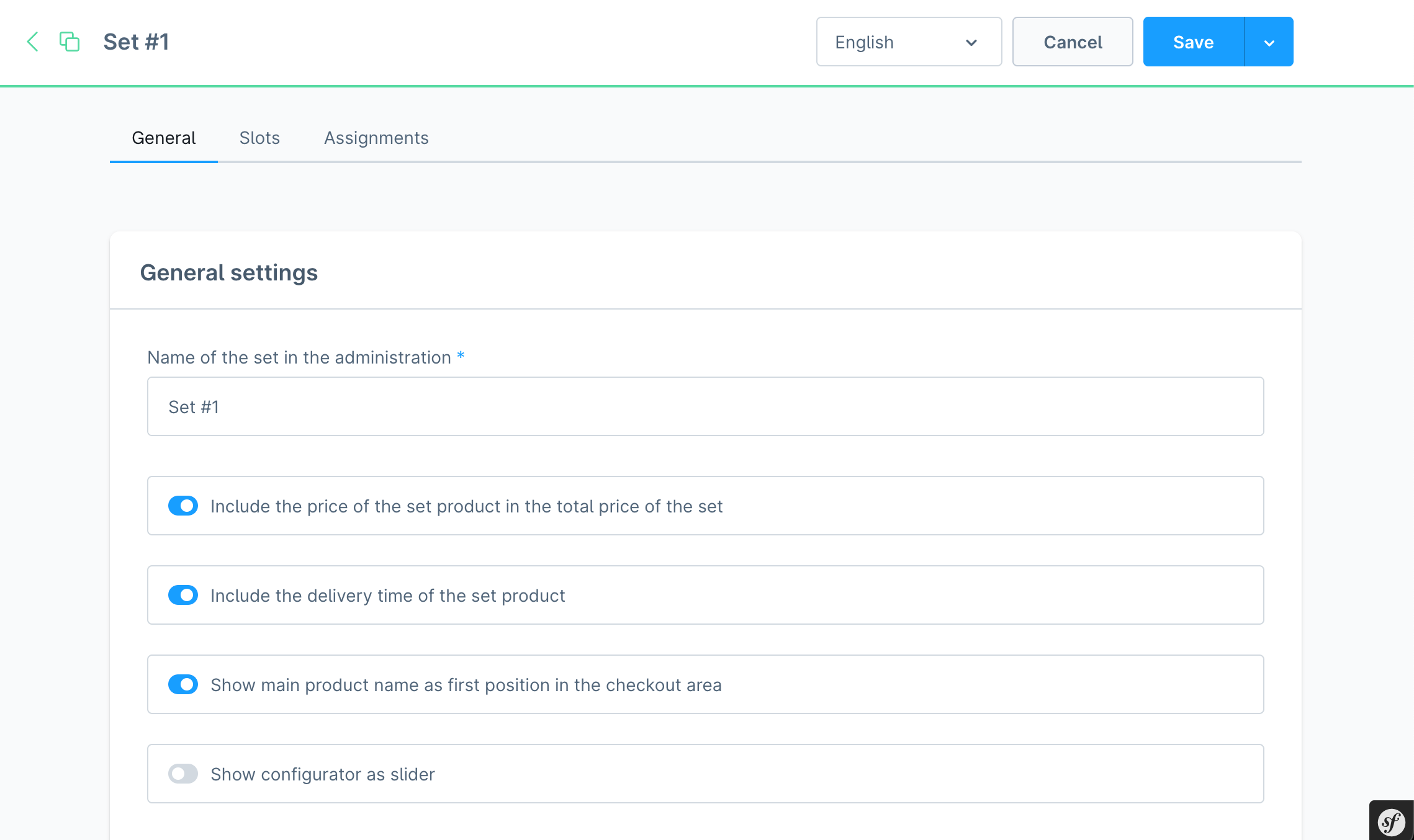

In the tab "General settings" you can give the set a name and decide if the price of the set product (cover product / main product) should be included in the total price of the set configuration. Then save your settings. Now you can create the desired slots in the "Slots" tab. In the "Assignments" tab you can view the products that have selected the configured set.

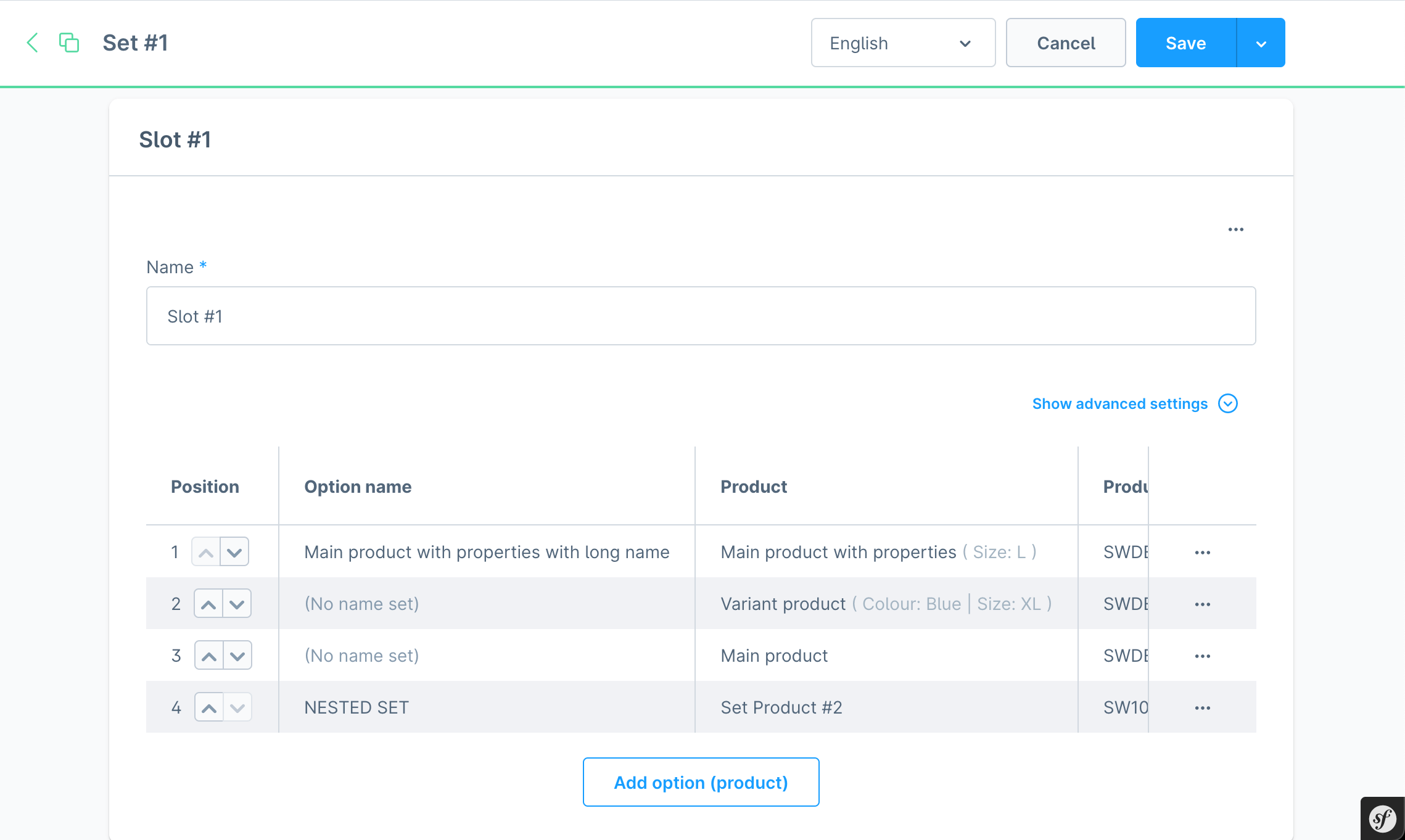

Slots

Via the button "Add slot" you can create an arbitrary amount of slots
Assign slot name

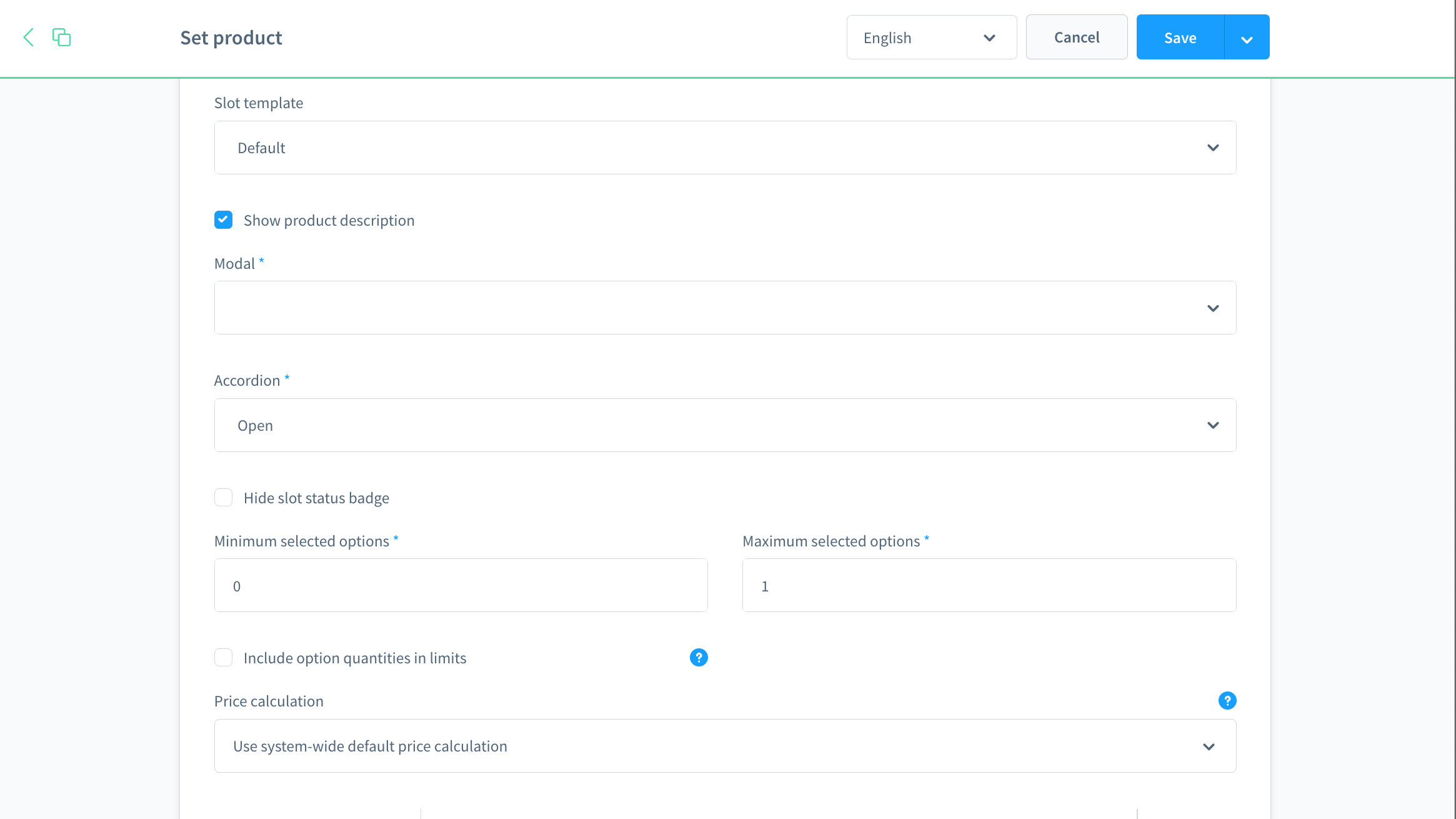

Slot settings (Click "Show advanced settings" to show all settings of the slot)
- Slot Template: Choose a template that is responsible for the appearance of the slot. Not every slot template is useful for every configuration. Just try out what fits best for your use case
- Show product description: This setting is only visible for slot templates where it is reasonable (limited to 100 characters).
- Modal: Here you can select whether a small info icon is displayed for the products, which opens a modal window (popup). Here you can set whether the product information should be loaded as content. Alternatively, you can define an individual URL, which is loaded as content.
- Accordion: Set if you want to use an accordion functionality for this slot. Thereby you can have the accordion displayed directly open after loading the page or collapsed.
- Minimum selection: Here you can set how many products must be selected in this slot. If you set the minimum selection to "0", the slot will be marked as optional
- Maximum selection: Set the maximum number of products that can be selected in this slot
- If the minimum and maximum selection have been configured to the same amount and only that number of options are assigned the customer cannot select or deselect options, only quantities of options can be configured
- Include options quantity selection in selection limit: If enabled, the numbers of the selected options will be included in the minimum or maximum selection. In addition, the minimum and maximum selection of options will also be adjusted so that they are less than or equal to the maximum selected options.
- Price calculation: Choose a price calculation valid for the slot if not specified different for the options
- Add option (product) button see the next point

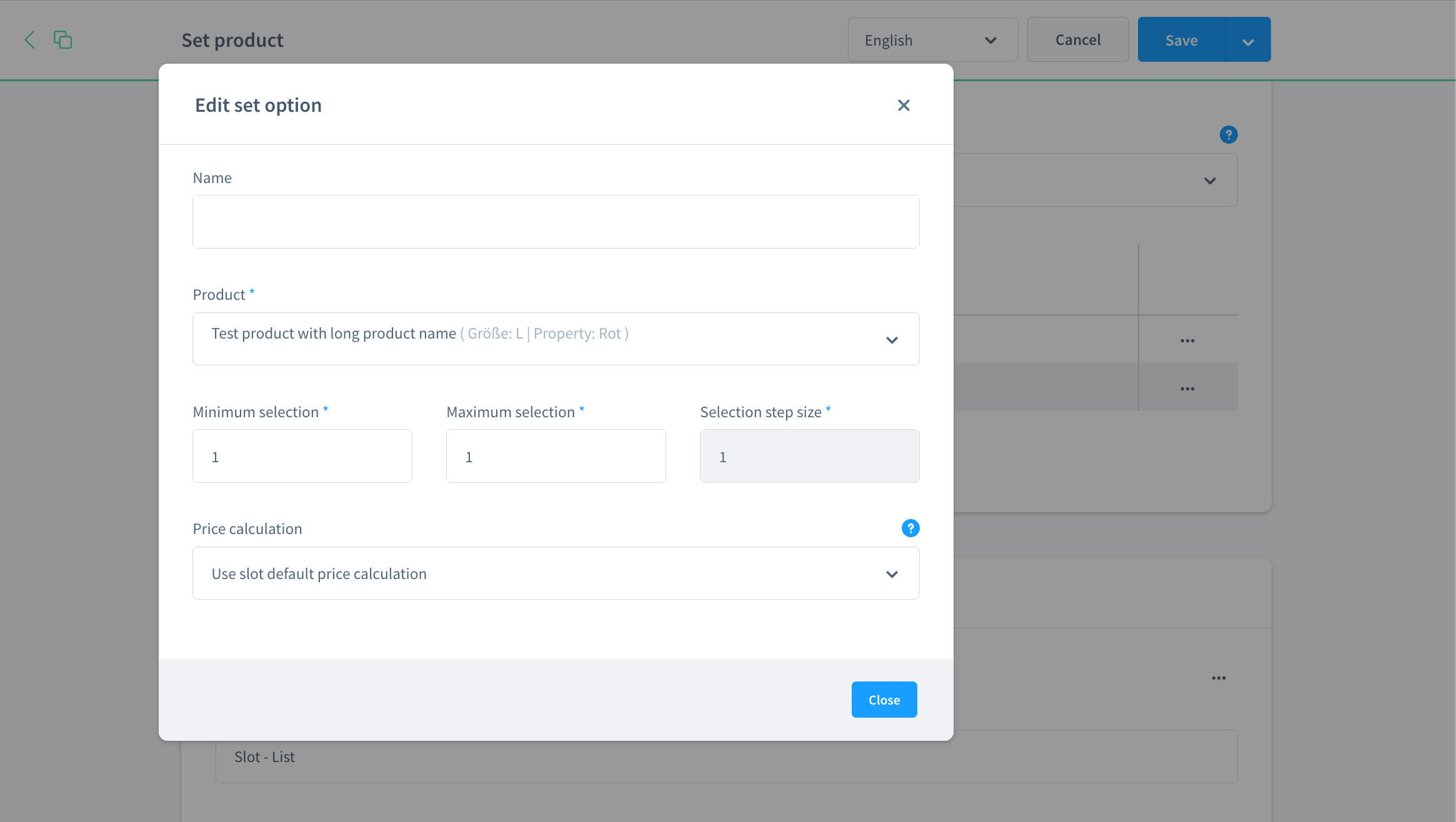

Add options (products)

Within a slot you can click the blue button "Add option (product)" at the very bottom of the slot
This will open a modal window where you can make the following settings
- Name: Displayed name of the product within the slot. This can be filled optionally. Otherwise the normal product name is used instead
- Product: Choose a product from your assortment using the dropdown
- Price calculation: If you wish, you can assign a custom price calculation to each added product via dropdown, or create a new price calculation. See the heading "Price calculation" below for more detailed information
- Minimum selection: Select how many times the product must be selected
- Maximum selection: Select how many times the product can be selected maximum
- Selection Step Size: Set in which steps the product can be selected. For example, if you select "3", in the dropdown you can select 3, 6, 9, etc. products
- If the minimum selection equals the maximum selection the customer cannot choose the quantity but rather the configured quantity is used

Price calculation

With the price calculation it is possible to control with which price the product of an assigned option is included in the total price of the set. The formula calculates the net price for each option. On this price, depending on the current store configuration, taxes and other Shopware surcharges are calculated. If this option is selected in the storefront, the calculated value is added to the total price of the set. This value can be positive or negative in the end. Caution: When configuring, it should be noted that the end result for set products cannot be negative prices.

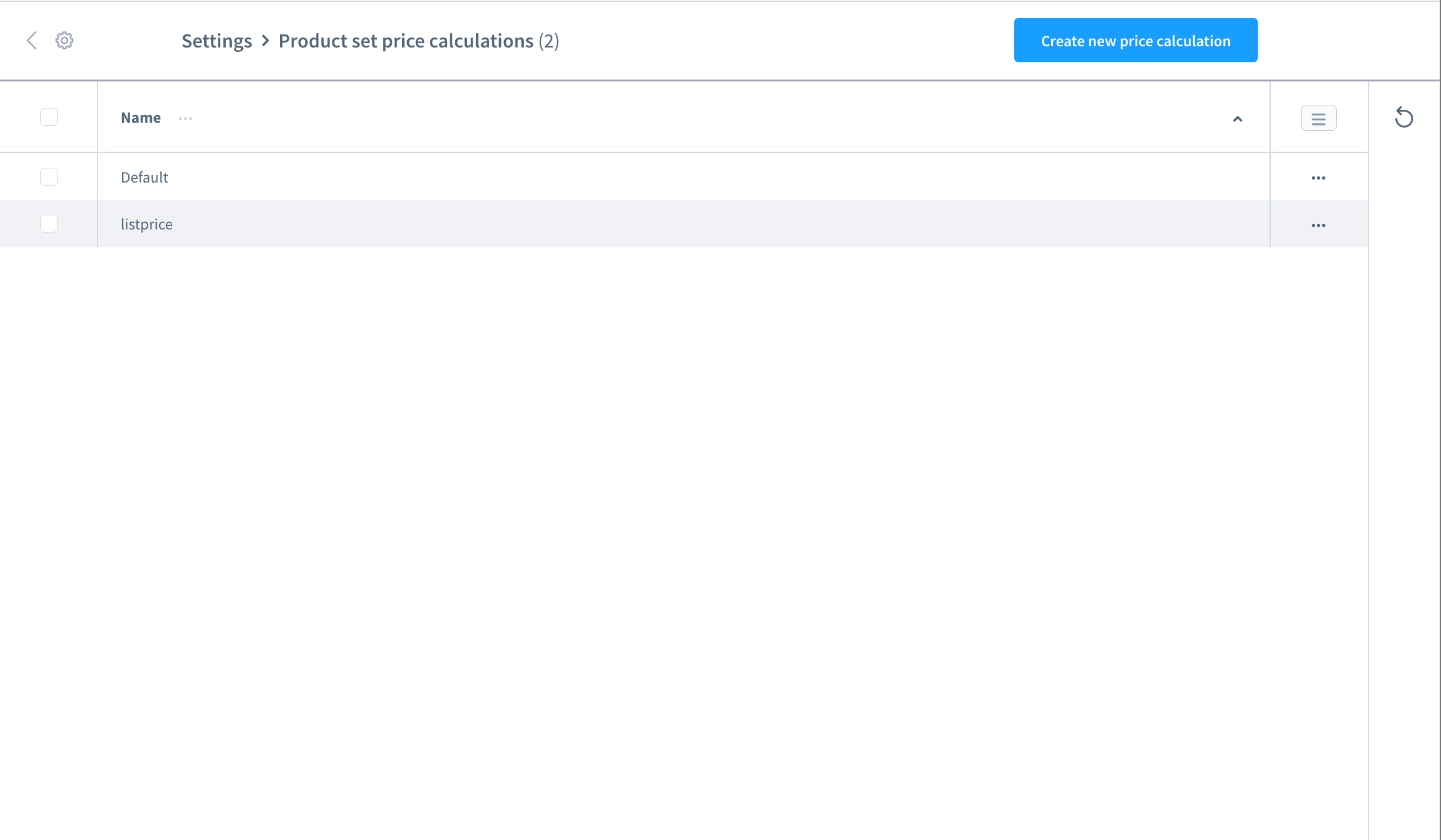

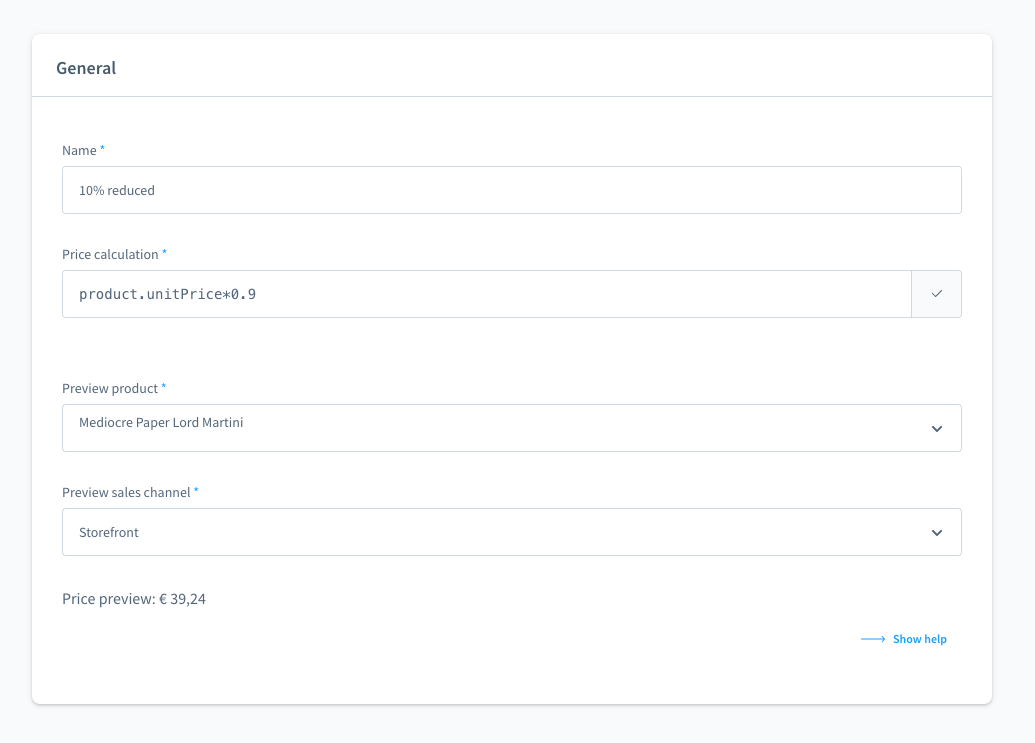

In "Settings -> Extensions -> Product set price calculation" it is possible to define the further price calculations. The created formulas, can be selected in each slot or individually for each option. If nothing is selected directly, the default price calculation with the formula 'product.unitPrice' is used as fallback.

Numbers and predefined variables can be used in the price calculation formulas The variables which are calculated depending on the selected option or the underlying product. Furthermore, the following arithmetic operators can be used: +, -, *, /, ^. These are executed in the default ranking order. Round brackets can be used to change the calculation order. For more information see here: https://en.wikipedia.org/wiki/Order_of_operations

The following aliases can be used:

product.unitPrice is the net price of the given option product, taking into account the scale prices.
product.customFields.* All additional fields of the product that contain a numeric value are available under their technical name. It is recommended that you always use the FALLBACK() function to set a default value when using additional fields. Example: product.customFields.product_set_discount

The following functions can be used:

PRICE(grossPrice) Allows to specify a gross price in the default currency using a static value. The function ensures that the currency factor and the tax rate of the product are applied correctly. Example: PRICE(9.99)
FALLBACK(value1, value2, ...) Returns the first value that is not empty. This function can be used especially to define a default value for aliases which are not always set. Example: FALLBACK(product.customFields.product_set_discount, product.customFields.product_set_discount_2, 0)
MIN(value1, value2, ...) Returns the smallest value.
MAX(value1, value2, ...) Returns the largest value.
FLOOR(value) Round off the value.
CEIL(value) Round up the value.

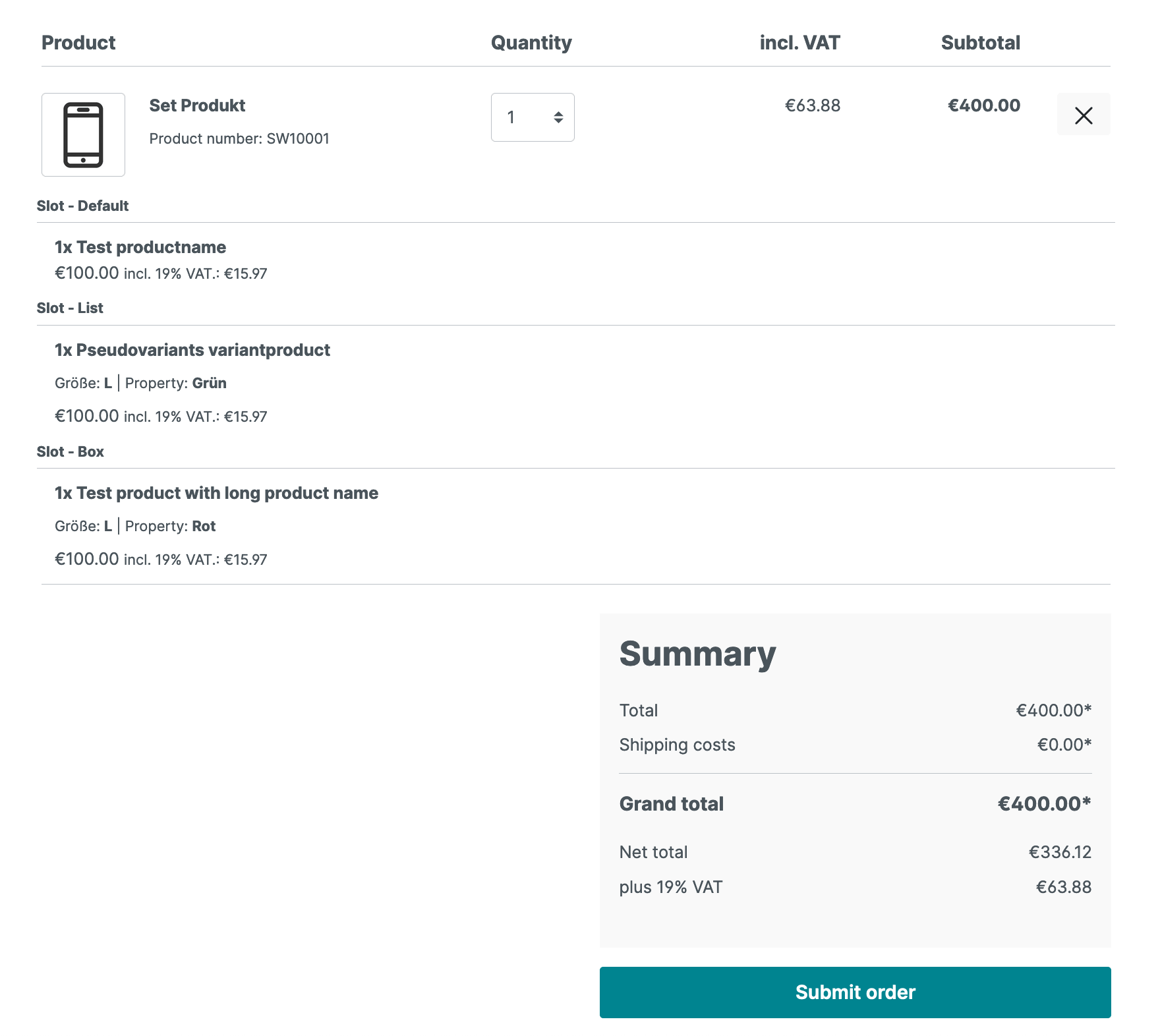

Documents, e-mail templates (order export)

You can find detailed instructions here: https://md.swk-web.com/s/V-2ZJ5RZ7#

For the invoice (PDF document), the setting "Order item filter (documents)" must be adjusted.
Here you can decide which items (lineItems) are loaded from the set product on the invoice. This is also possible for: HTML e-mails, Plain Text e-mails, API

Explanation of each filter

Set Position: name of the configured set
Set Product Position: name of the main product to which the set product is assigned
Slot Position: name of the slot
Option Position: name of the option
Option Product Position: name of the product which is assigned to this option
