The Product Configurator plugin lets your customers put a product together step by step on its product page. You build each product configurator in the Administration from steps with 15 field types, set surcharges per option or input and show steps only when earlier choices call for them. The price calculation runs on the server: the live total on the product page (default) is calculated with the cart's own price logic, and every choice goes into the cart, the checkout and the order.
Product configurator with 15 field types

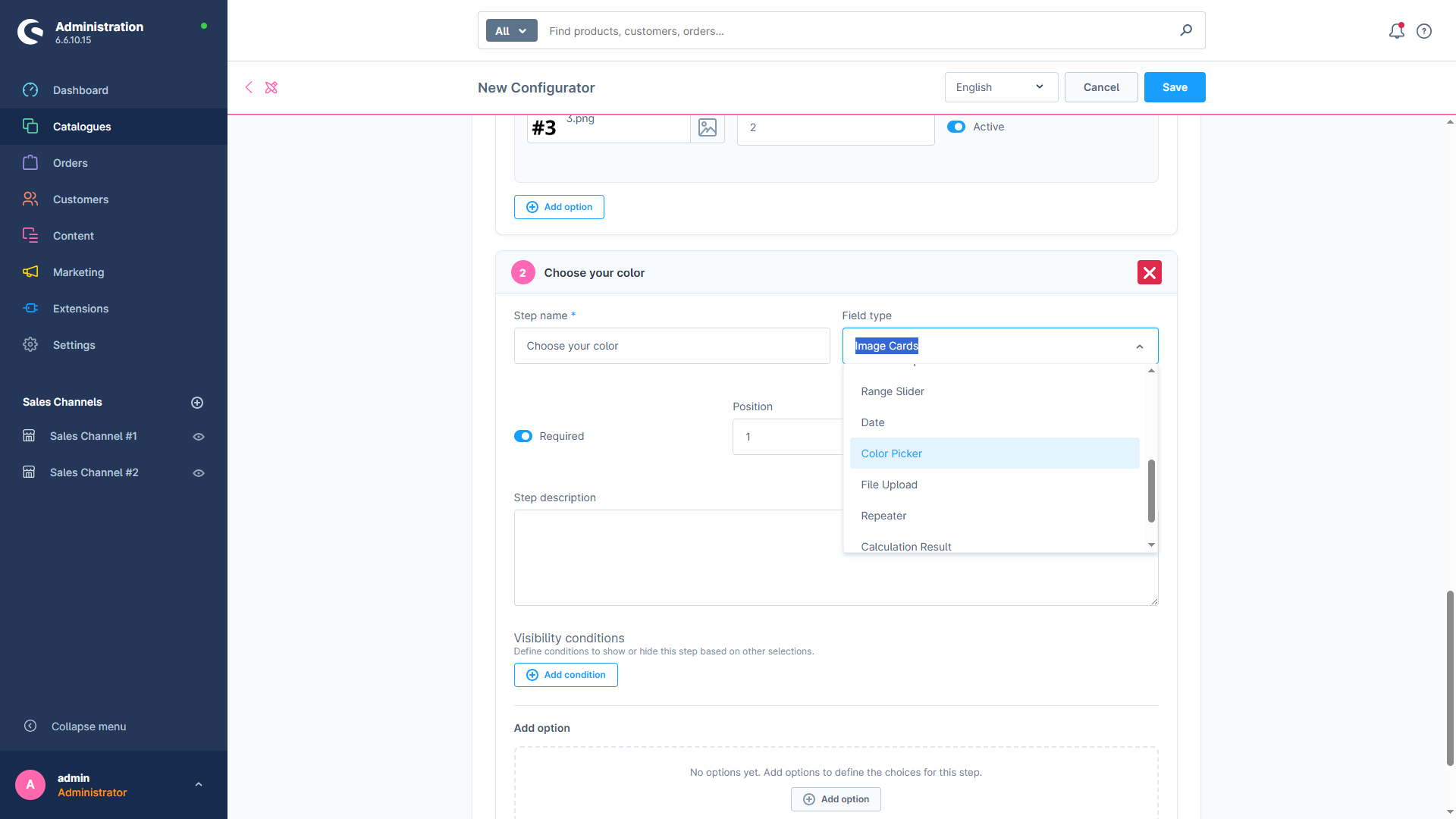

Each step of a product configurator has one field type:
- Options: "Image Cards", "Radio Buttons", "Toggle Buttons", "Dropdown" and "Checkbox" for several options at once
- Inputs: "Text Input" (up to 1,000 characters), "Text Area" (up to 5,000), "Number Input" and "Range Slider" with minimum, maximum and step increment, "Date" and "Color Picker" with a hex field
- "File Upload", "Repeater", "Calculation Result" and "Spacer / Separator"

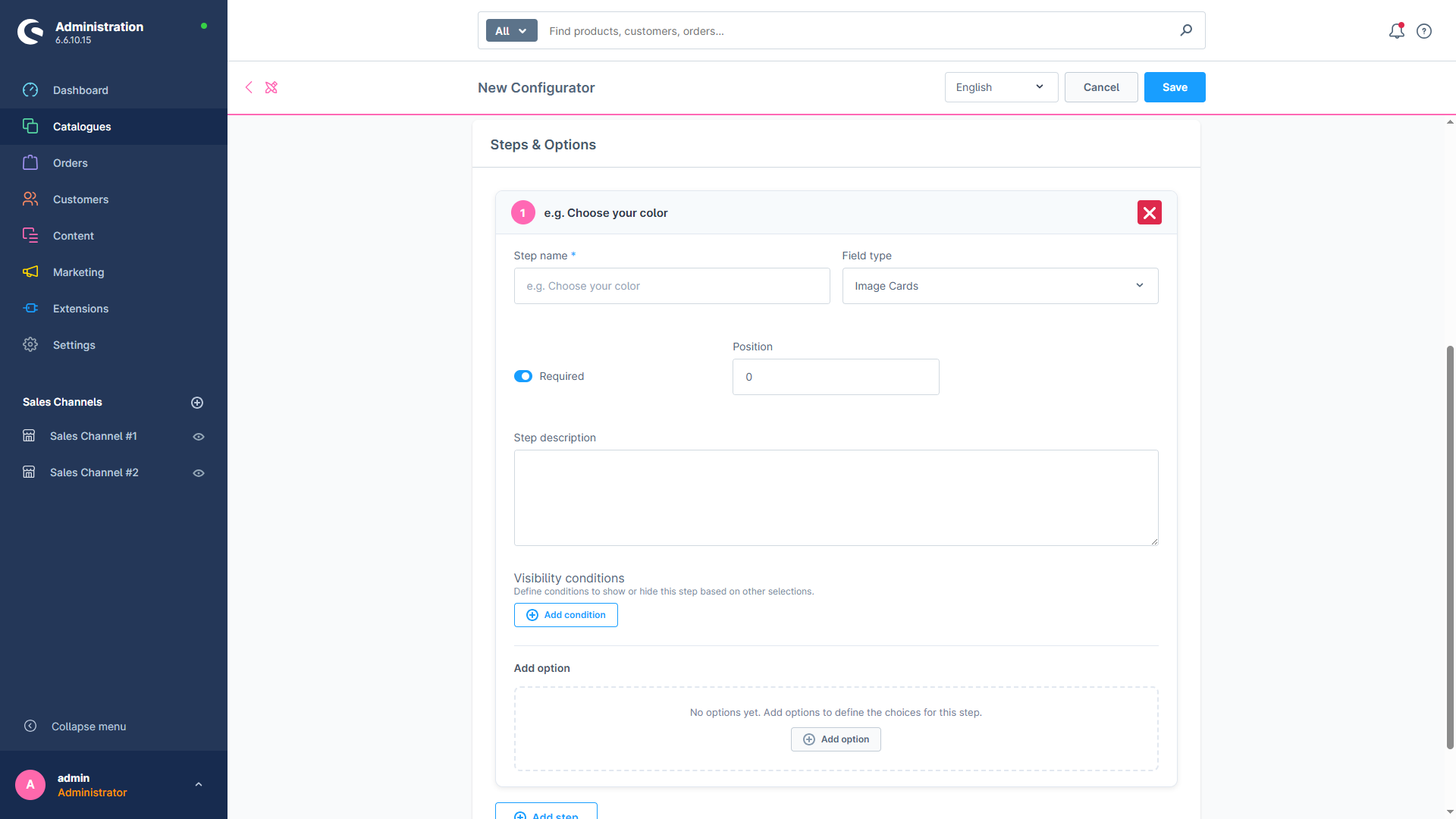

- Every step has a name and a position; all steps except "Spacer / Separator" have a step description, and all except it and "Calculation Result" the "Required" switch; text and number steps add a placeholder text, and text, number and date steps your own error message
- Options have a name, a description, a price modifier, a weight in kg, a position and an active switch; image cards also show an image, and only image cards show the description in the shop
Step by step through the product configurator

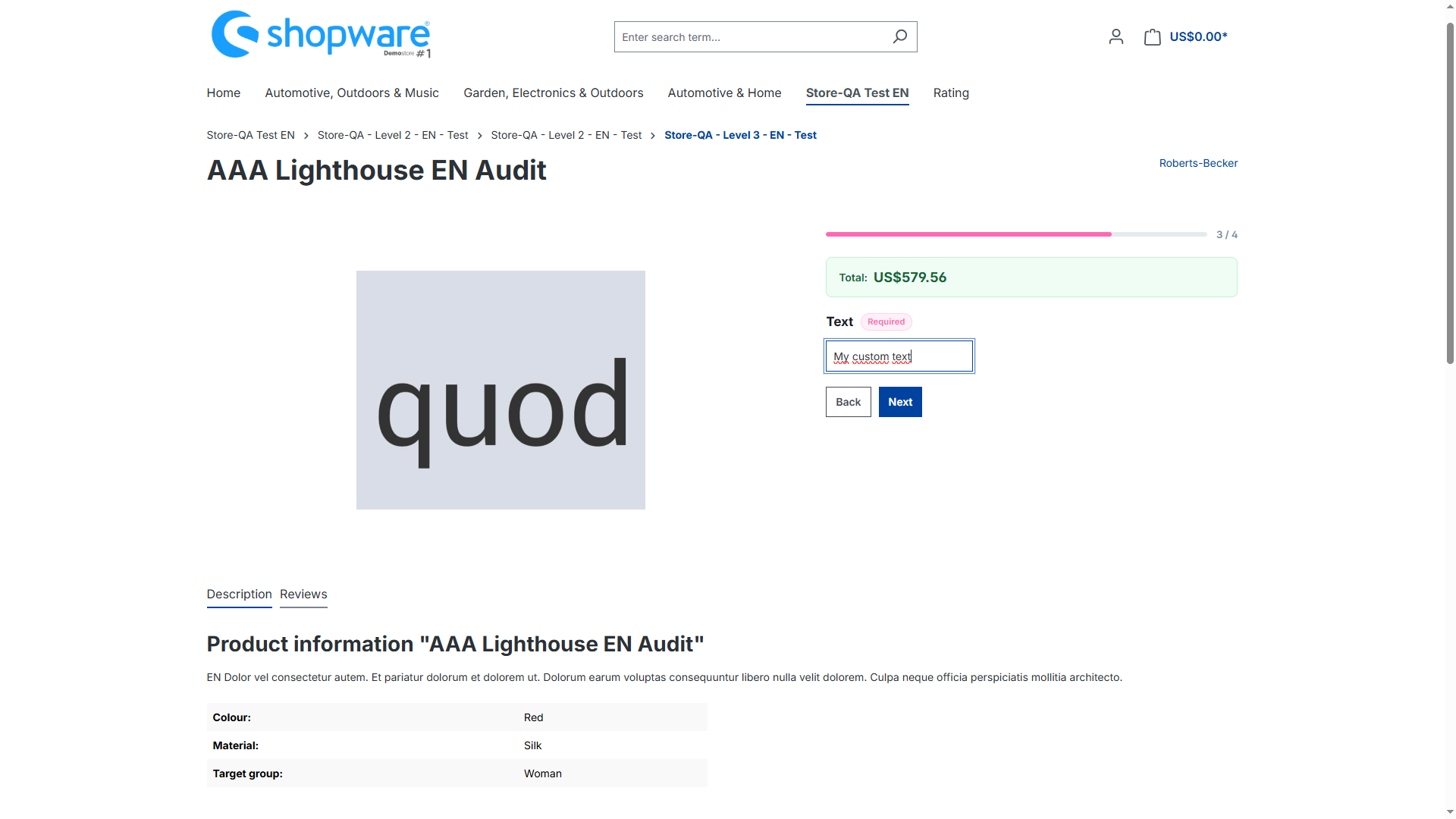

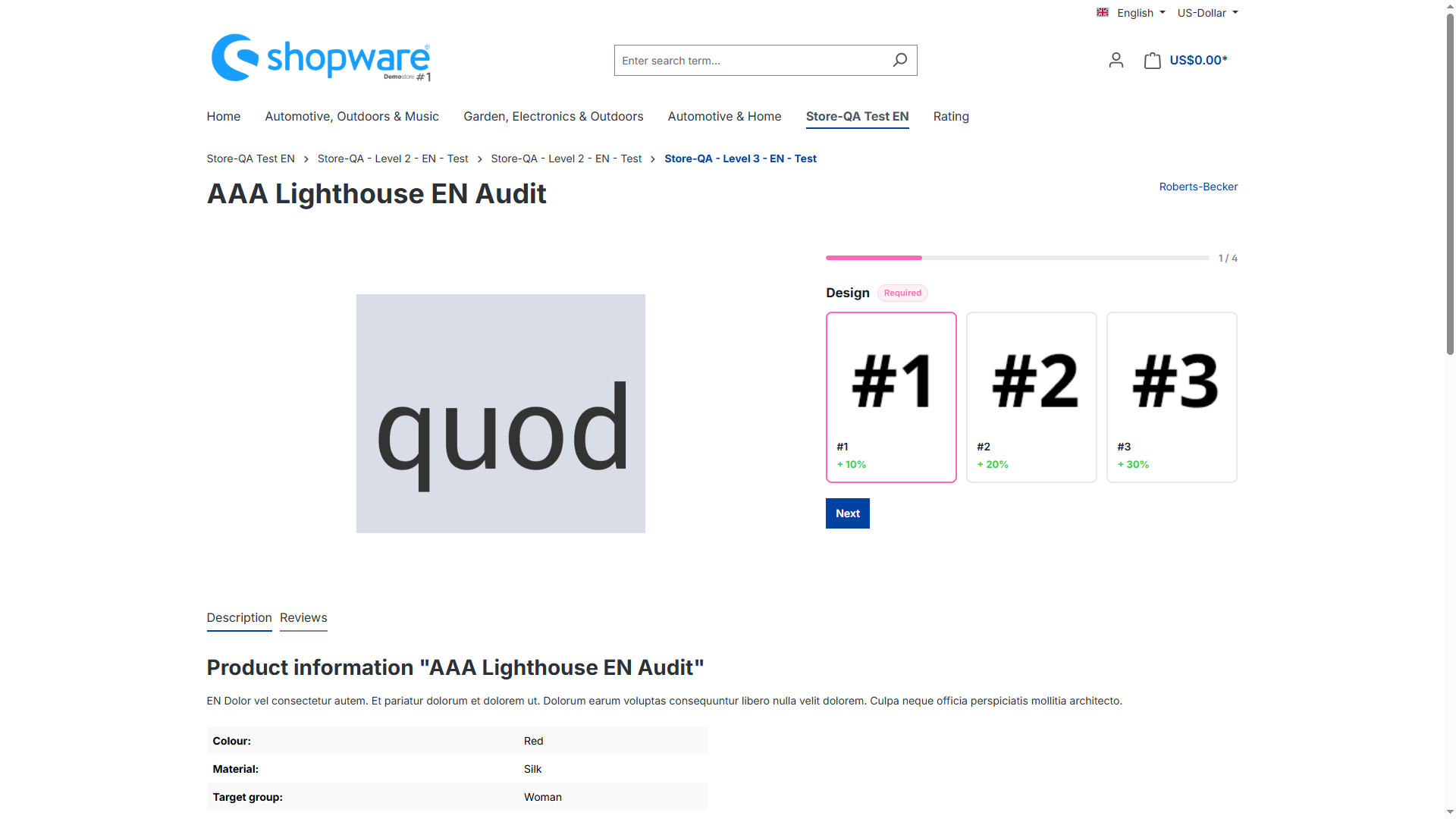

- Customers see one step at a time and move on with "Next" and "Back"; the last step shows "Complete Configuration"
- "Next" checks the current step first; required steps carry the badge "Required", optional ones "Optional", except "Calculation Result" and "Spacer / Separator"
- A progress bar shows the current step, for example "2 / 5" (default)

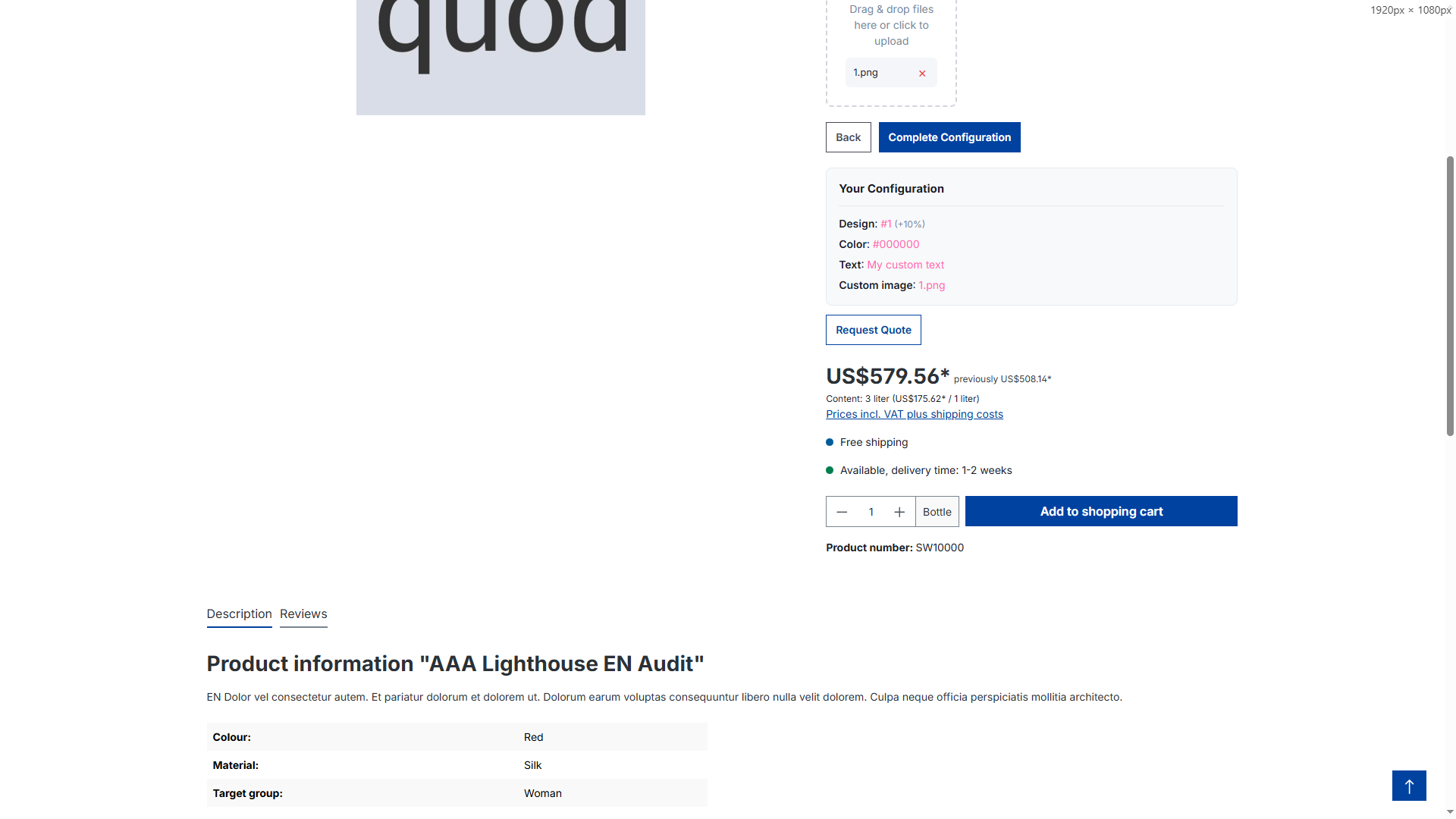

- "Complete Configuration" shows the summary "Your Configuration" with each choice and its surcharge
- The add-to-cart button stays inactive until all required steps are filled in and the configuration is valid
- The current selection is kept in the page address, so a reload or a shared link restores it (uploads excluded)
Price calculation with surcharges

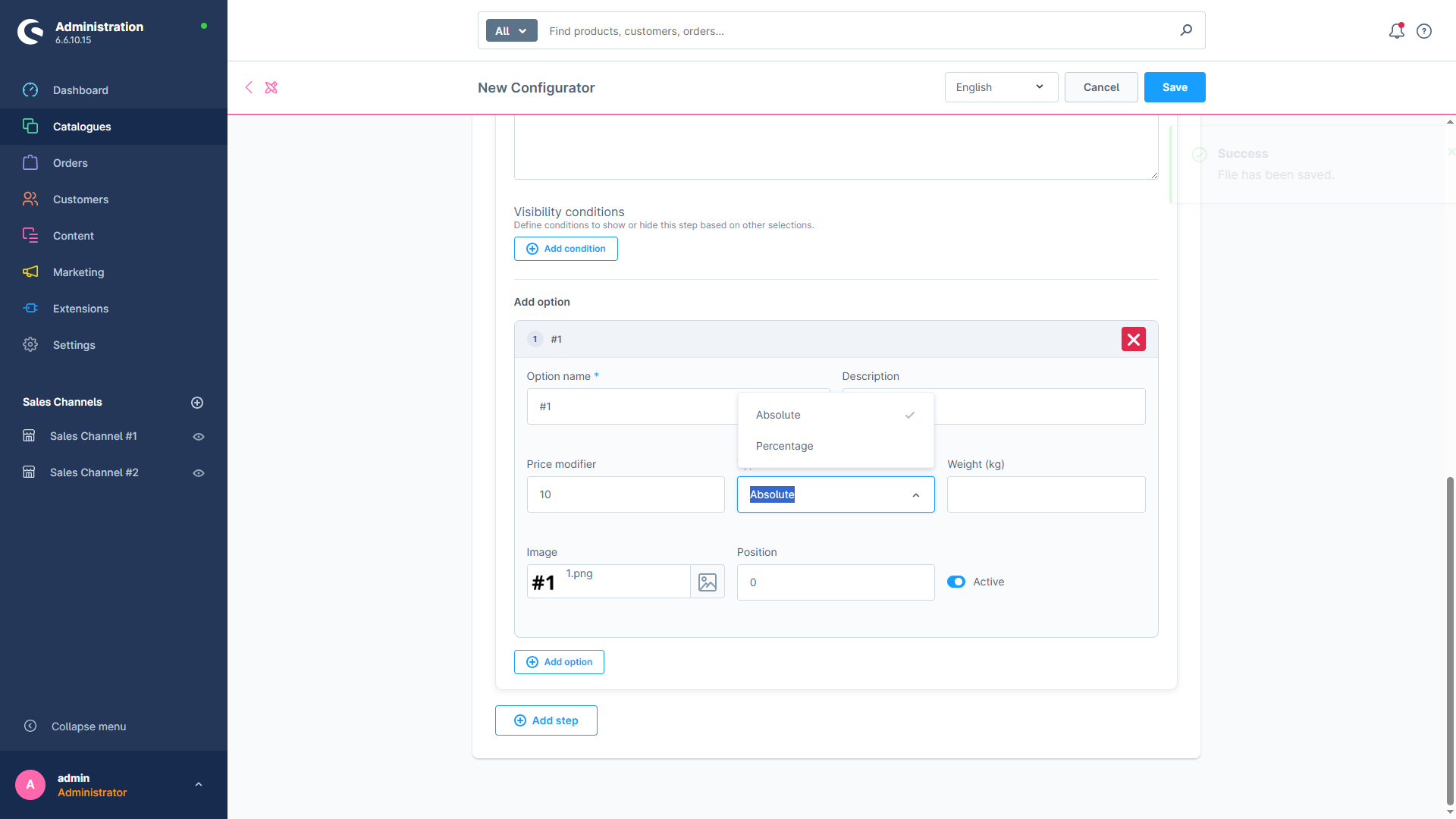

- Each option gets a "Price modifier" of the type "Absolute" or "Percentage"; negative values lower the price
- Text, number, slider, date, colour and upload steps have their own "Price surcharge", charged once the customer fills them in
- Absolute amounts are entered gross in the default currency, converted for net prices and other currencies and rounded with the currency's price rounding
- Percentage values refer to the unit price of the product
- Image cards, radio buttons, toggle buttons and checkboxes show the surcharge, for example "+ €12.00", "+ 10%" or "Included" at zero; dropdowns show it in brackets
- The live total "Total:" follows every choice and the quantity; from a quantity of 2 it also shows the price per unit (default)
- List prices get the same surcharge, and option weights count towards the shipping weight of the item
Price calculation with formulas
The field type "Calculation Result" computes a value from other steps, for example width times height times the price per square metre.
- "Price formula" with + - * / and parentheses and the functions min(), max(), round(), ceil(), floor() and abs()
- "Insert step" adds a reference to another step: number steps provide their value, option steps the price modifier of the selected options, repeated steps the sum of all rows
- Calculations can use other calculations, and hidden steps count as 0
- The customer sees the result in the step, and it is charged as a surcharge (gross, in the default currency)
- Formulas are checked when you save; syntax errors, unknown steps and circular references are reported, and the product configurator is only saved once they are fixed
Conditional steps in the product configurator

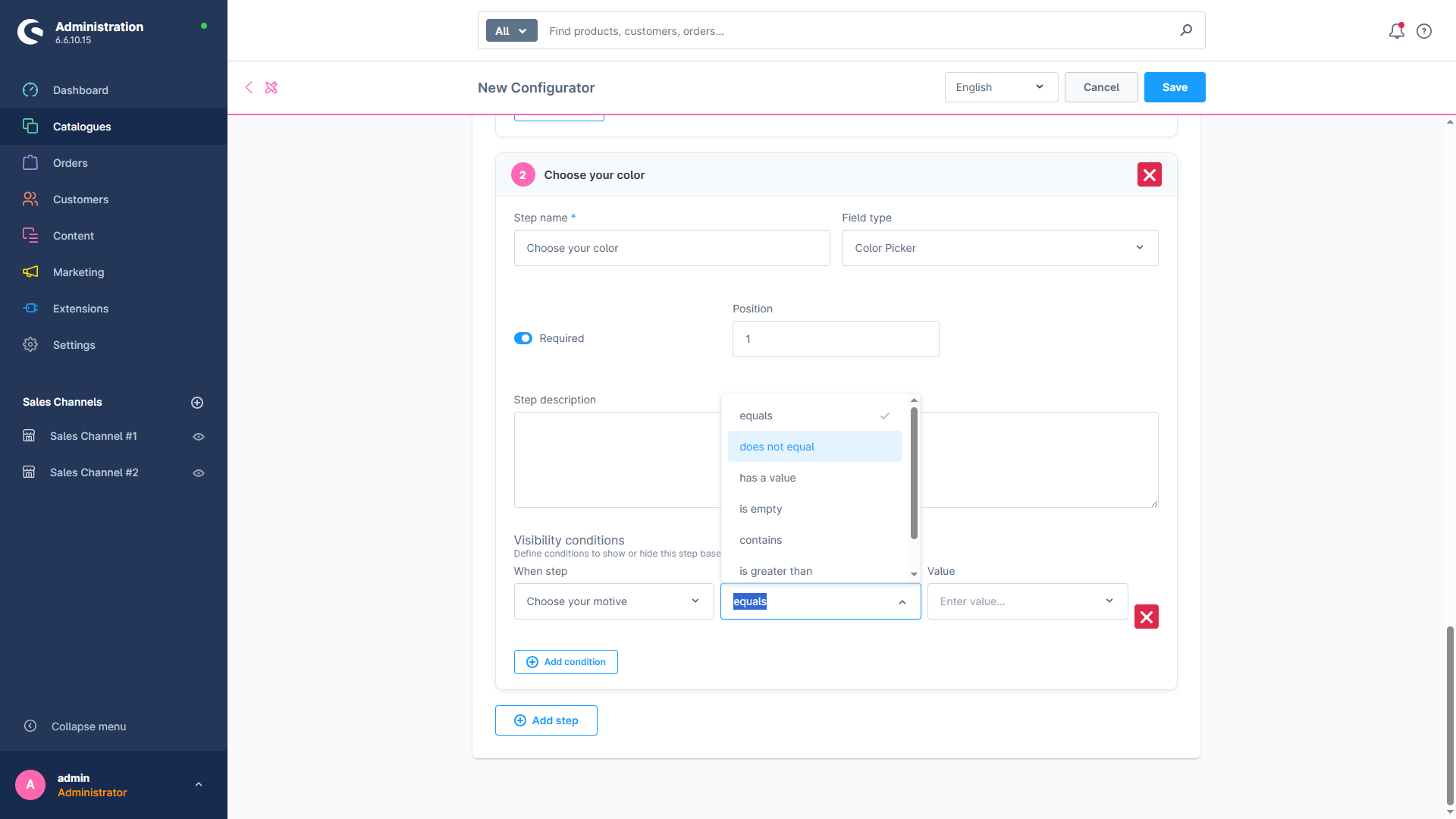

Under "Visibility conditions" you decide when a step appears.
- Each condition consists of "When step", "Operator" and "Value"; with several conditions, "Match" decides between "All conditions (AND)" and "Any condition (OR)"
- Operators: equals, does not equal, has a value, is empty, contains, is greater than, is less than
- For option steps you pick the value from the options, for other steps you type it
- Hidden steps are skipped by the navigation and the progress bar and are not charged
- The server checks the conditions again for the live total and in the cart
File uploads and repeaters in the product configurator

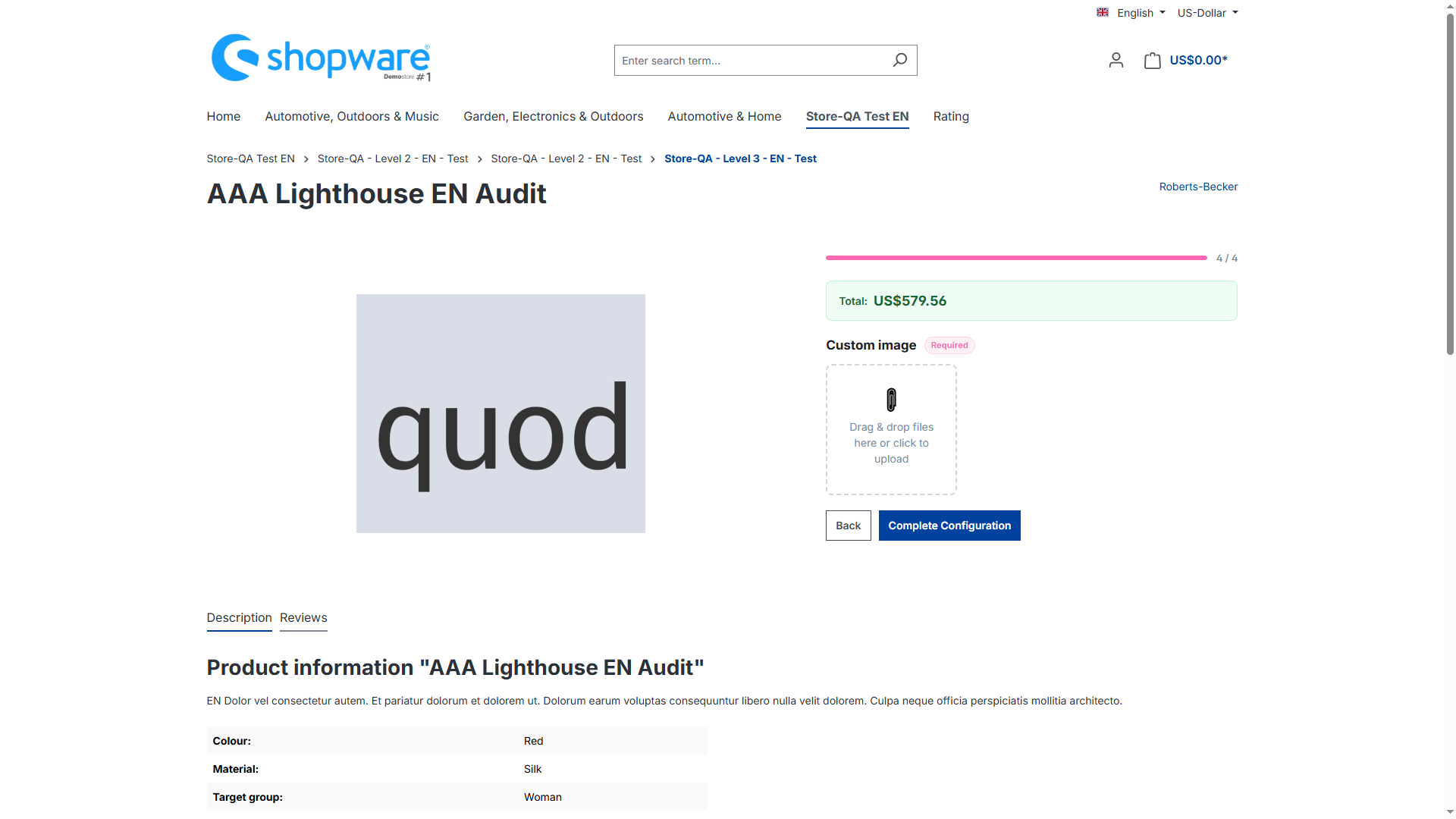

- "File Upload" takes several files by drag and drop or click, with "Max file size (MB)" from 1 to 50 (default 10) and "Allowed file types" (default images and PDF)
- Files are stored in the private file system, and the order in the Administration links them for download
- Uploads that never reach a cart are deleted after 24 hours by a daily scheduled task
- "Repeater" turns another step into rows: customers add up to 10 rows with "+ Add another" and remove them again
- Each row is charged on its own, and the repeated step no longer appears as a step of its own
Product configurator in the cart and order
- Add to cart sends the selection along; every configuration gets its own cart line, and for the same configuration the quantity goes up

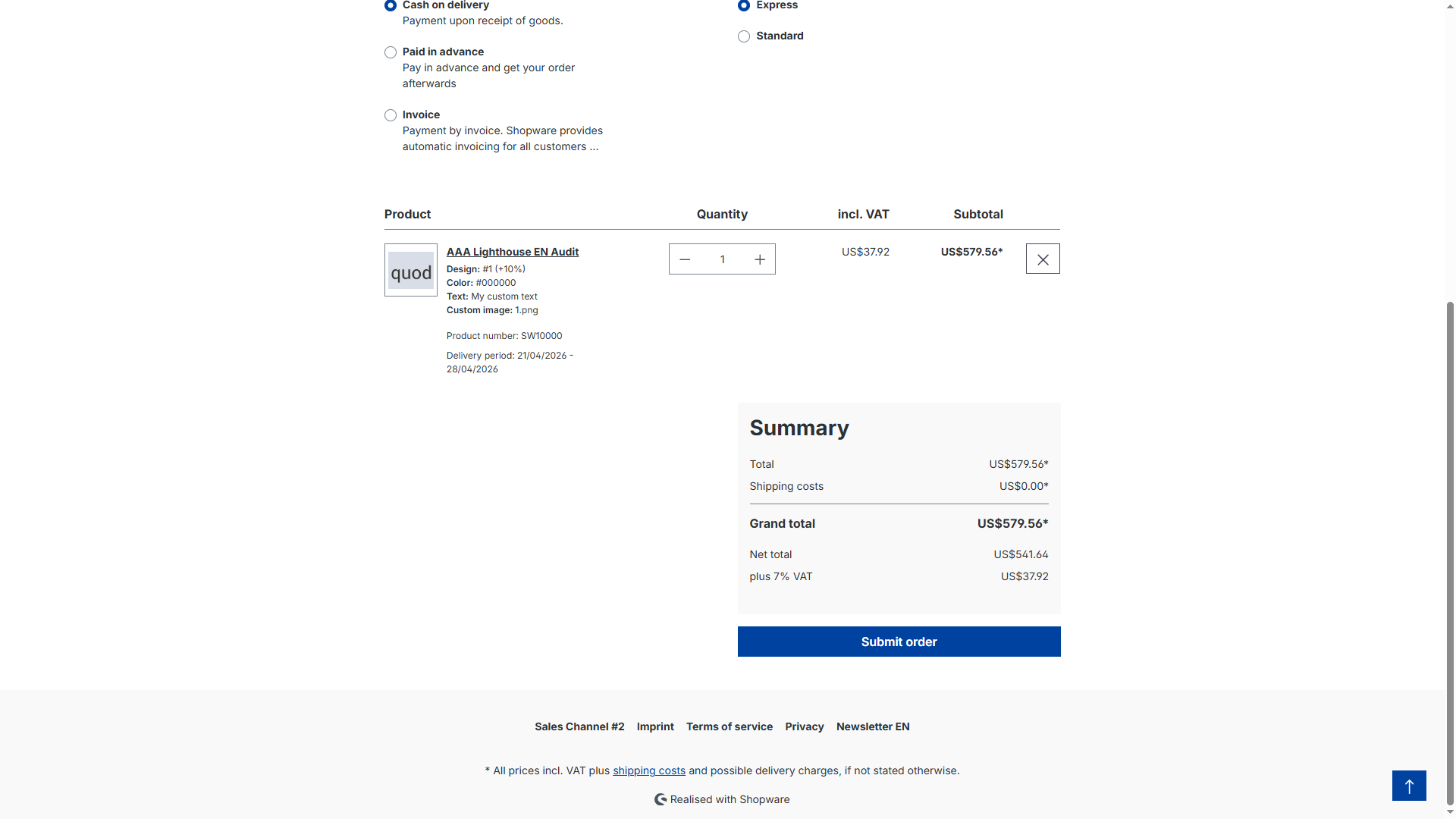

- Cart and checkout list each choice below the product name, for example "Glaze: Celadon (+€12.00)"
- The cart recalculates the price on the server, and items whose configuration is incomplete or no longer available block the order with a notice

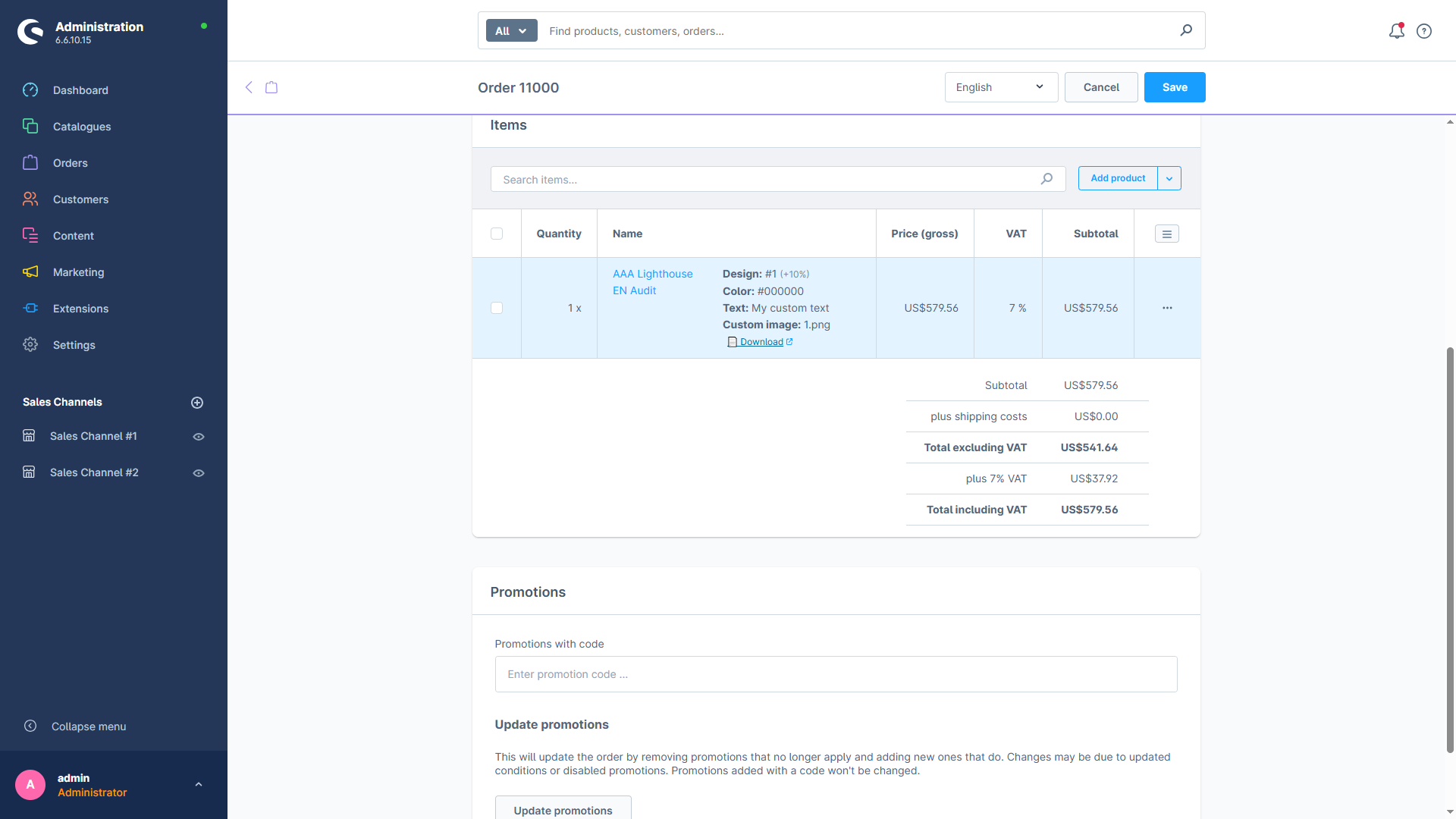

- In the order in the Administration, the configuration appears below the product name, with download links for uploaded files
Quote request from the product configurator
- After "Complete Configuration", the button "Request Quote" appears below the summary

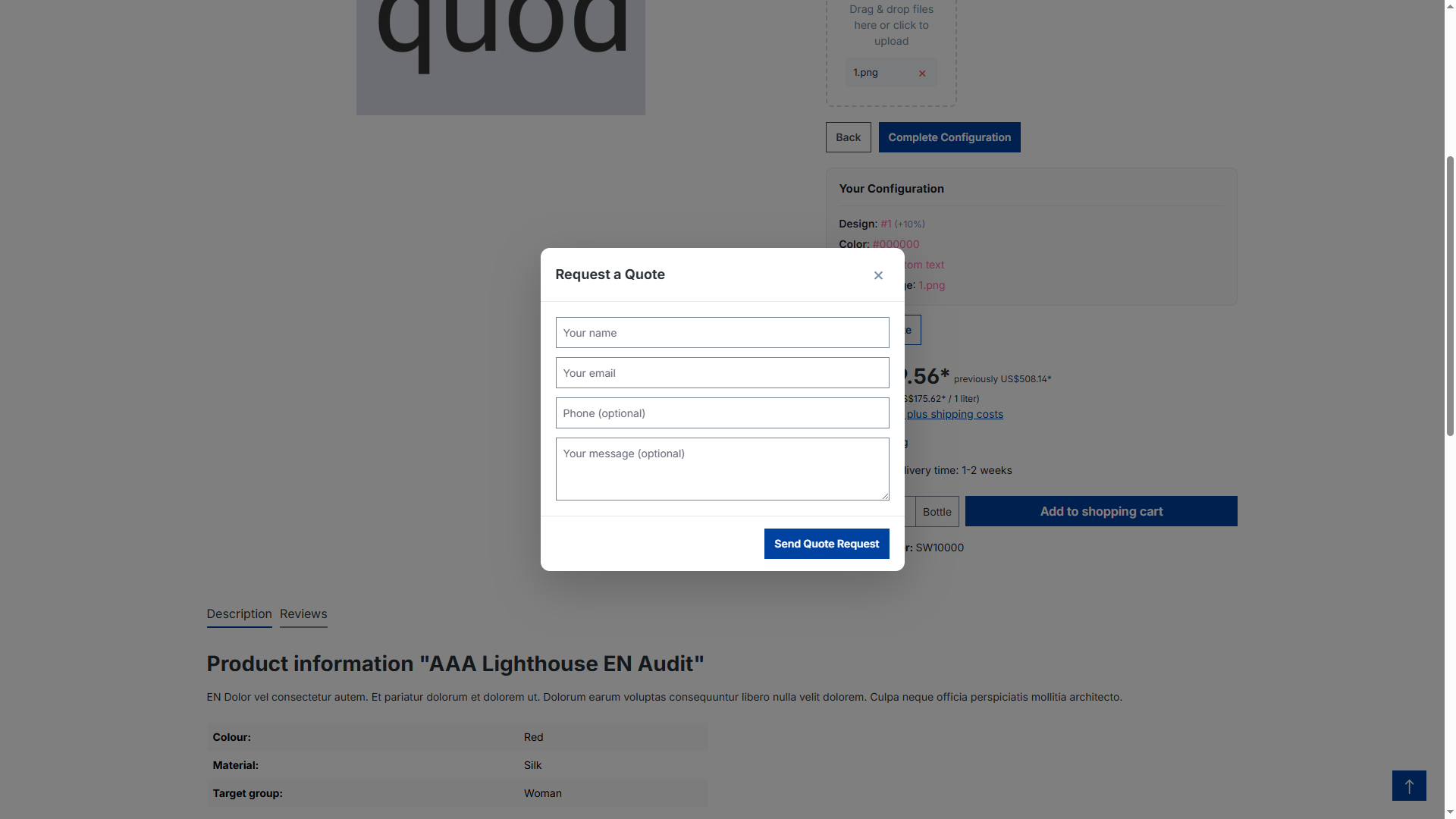

- The form "Request a Quote" asks for name and email (required) and for phone and a message (optional)
- The request goes by email to the "Shop owner's email address" in "Basic information" (per sales channel), with the customer's details, the product name and the configuration summary
Product configurator placement and look

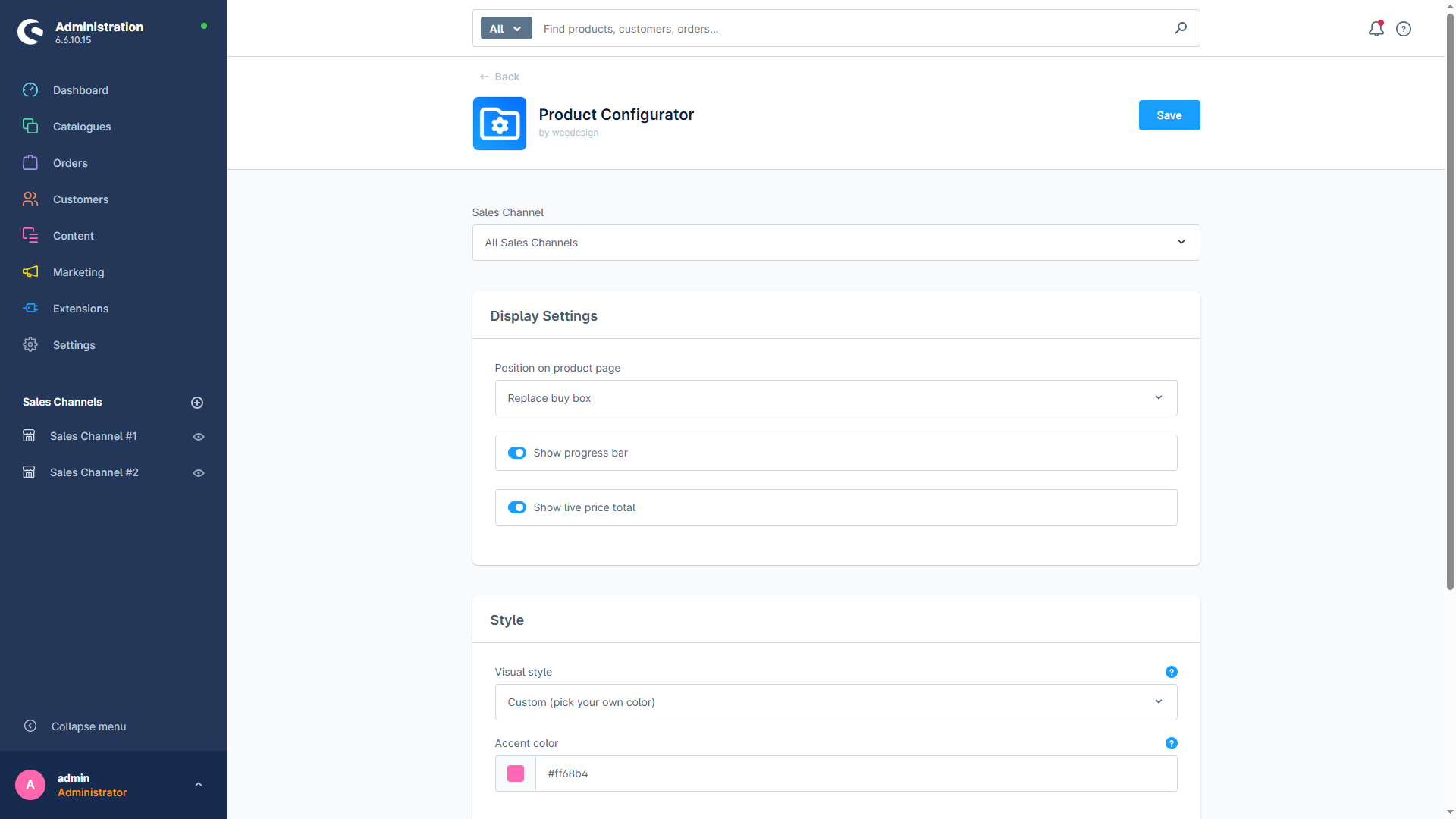

Plugin settings per sales channel and two more ways to show it:
- "Position on product page": "Replace buy box" (default; the product configurator appears in the buy box above the quantity and the add-to-cart button), "Below description" or "Own tab" with the tab "Configuration"
- "Below description" and "Own tab" use the "Product description & reviews" block of the product page layout
- "Visual style": Custom with your own "Accent color", Theme with the brand colour of your shop, Light or Dark
- "Show progress bar" and "Show live price total" (both on by default)

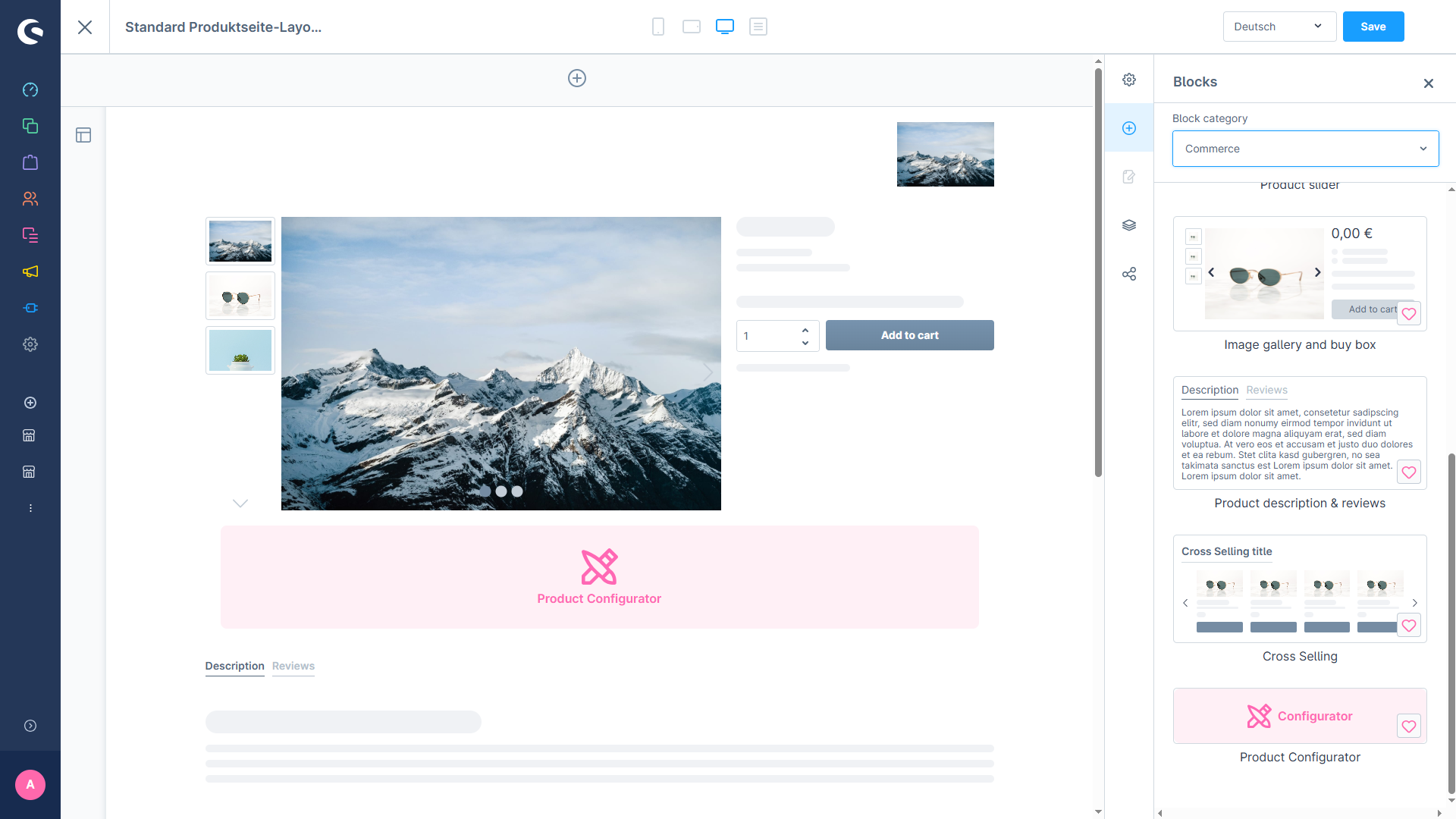

- The element "Product Configurator" for Shopping Experiences shows the product's configurator on product page layouts and the one you choose on other layouts, there without add to cart
- For headless shops, a Store API route returns the configurator of a product (read only)
Managing product configurators in the Administration

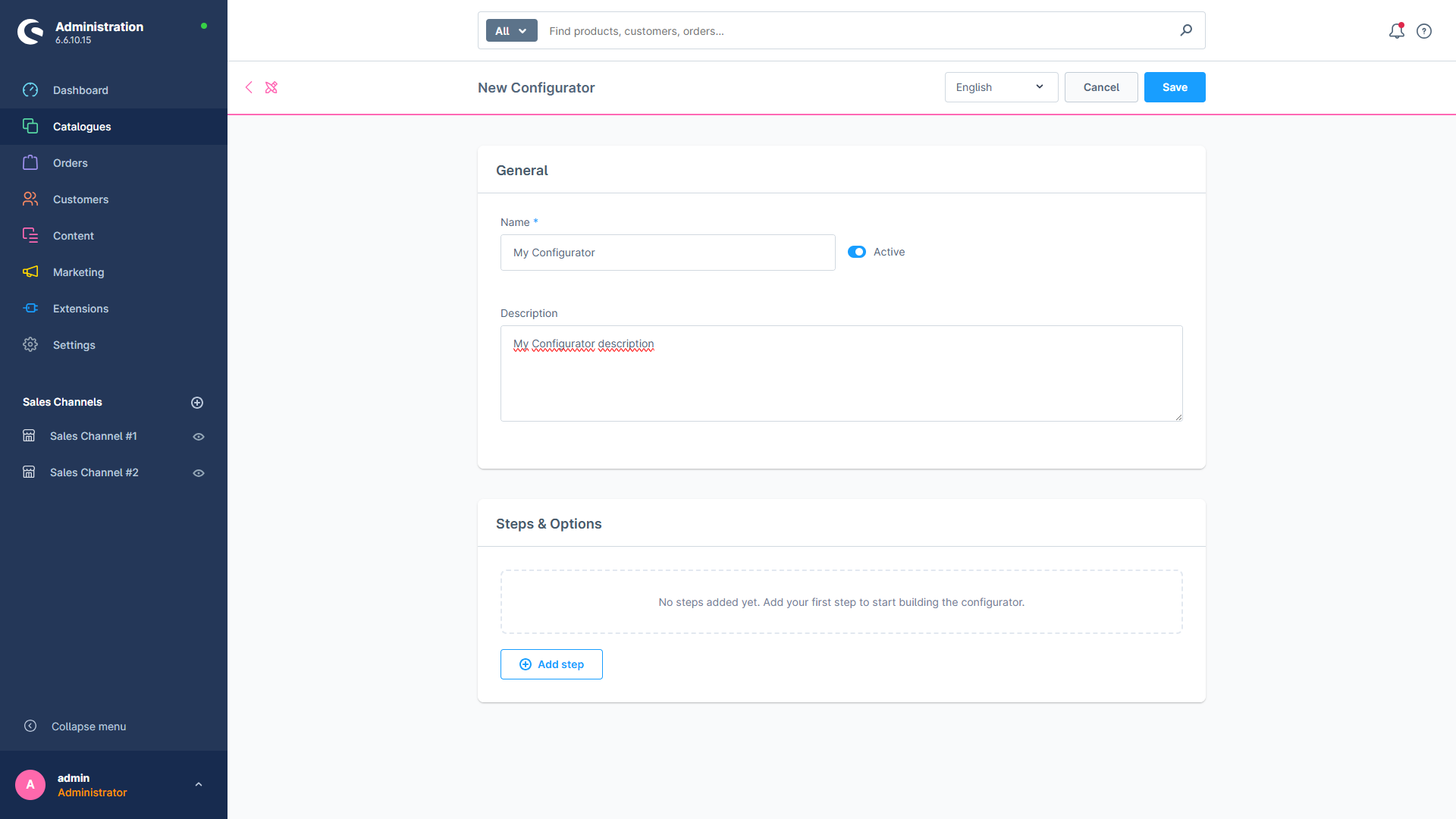

- Catalogues > Product Configurator opens a dashboard with the figures Configurators, Active, Steps, Options and Products and the card "Recent Configurators"
- The "Configurators" list offers search, "Duplicate" and delete, and "Documentation" explains the setup
- "Duplicate" copies steps, options, translations, formulas, conditions and repeater links; the copy is inactive and named "… (Copy)"
- Names, descriptions and option texts are translatable with the language switch; steps and options are added and removed in the default language

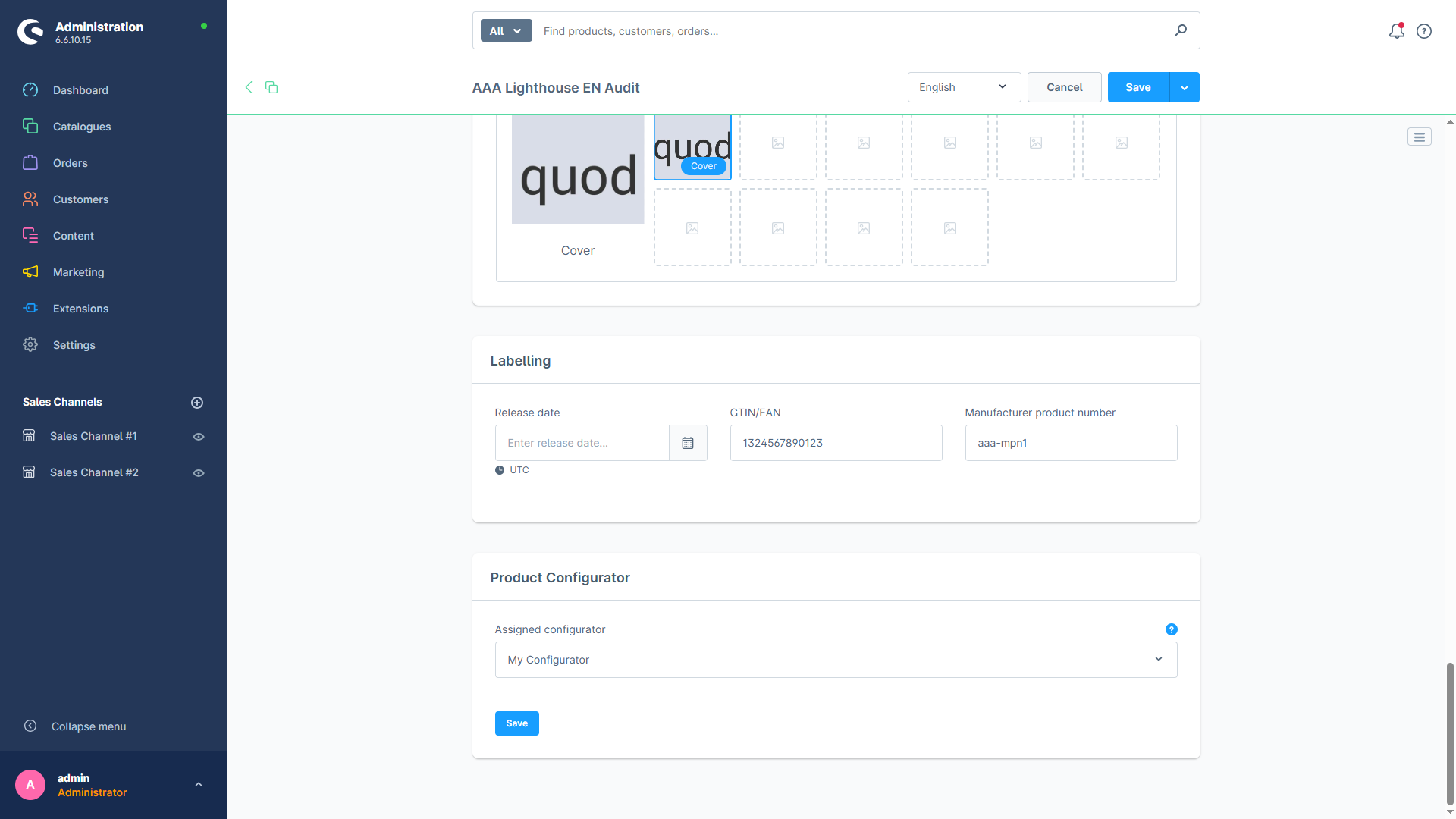

- You assign one configurator per product in the card "Product Configurator" on the product's "General" tab; variants use their own assignment or the one of the main product
- Permissions to view, edit, create and delete configurators for roles in "Users & permissions"
