PDF Document Editor
Description
Highlights
About the Extension
PDF templates for four document types

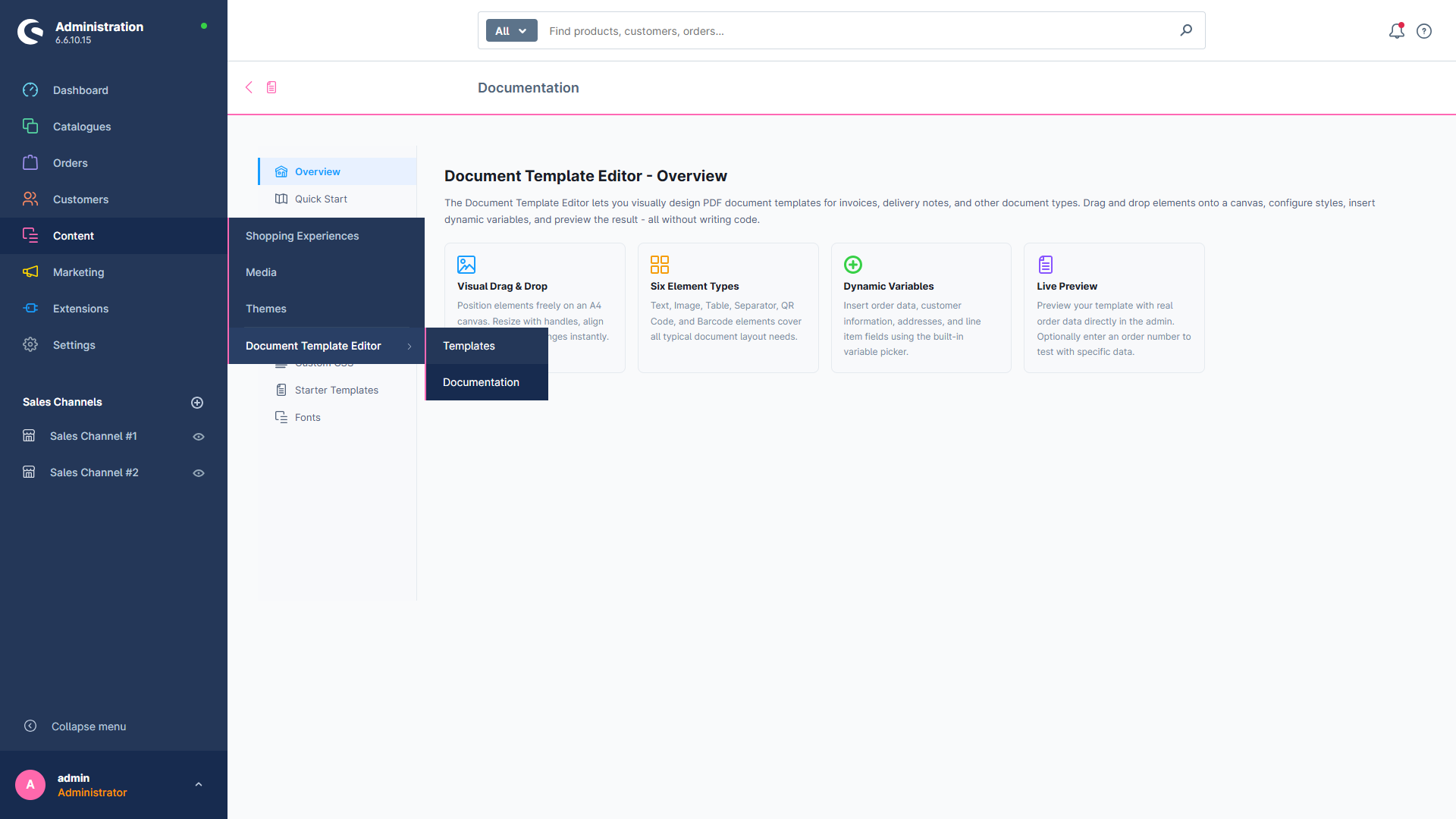

PDF Document Template Editor replaces the standard layout of invoices, delivery notes, credit notes and cancellation invoices with your own PDF template. You build each PDF template, such as your invoice template, visually in the Administration under Content > Document Template Editor, on a page that has A4 format by default. If no active PDF template matches a document, the standard layout is used, and the same applies if an error occurs while your template is rendered. Separate permissions control who can view, edit, create and delete templates.

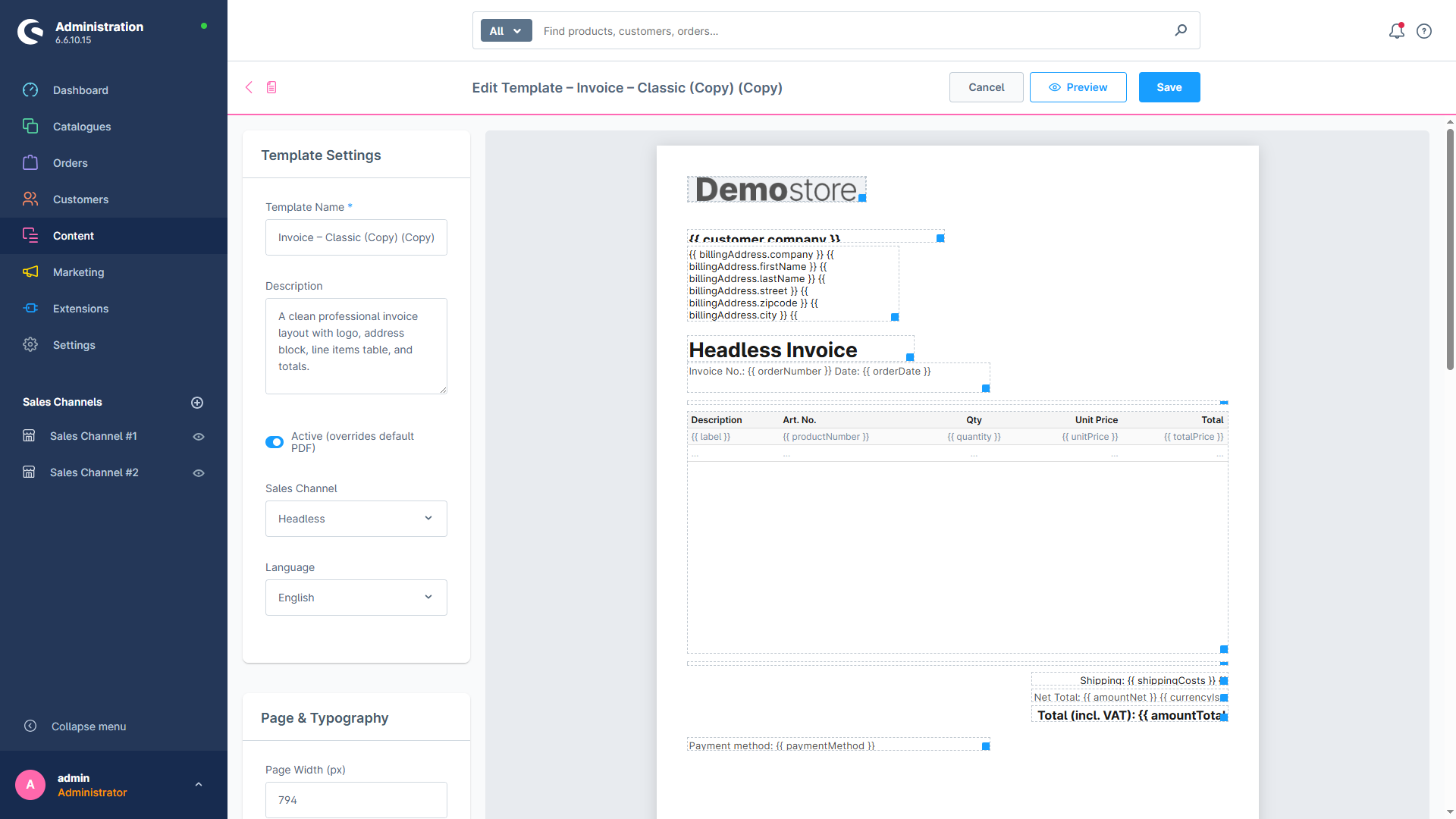

Build the PDF template with drag & drop
- Seven elements: Text, Image, Line Items Table, Separator, QR Code, Barcode and HTML
- Drag elements across the page and resize them with the handle in the bottom-right corner

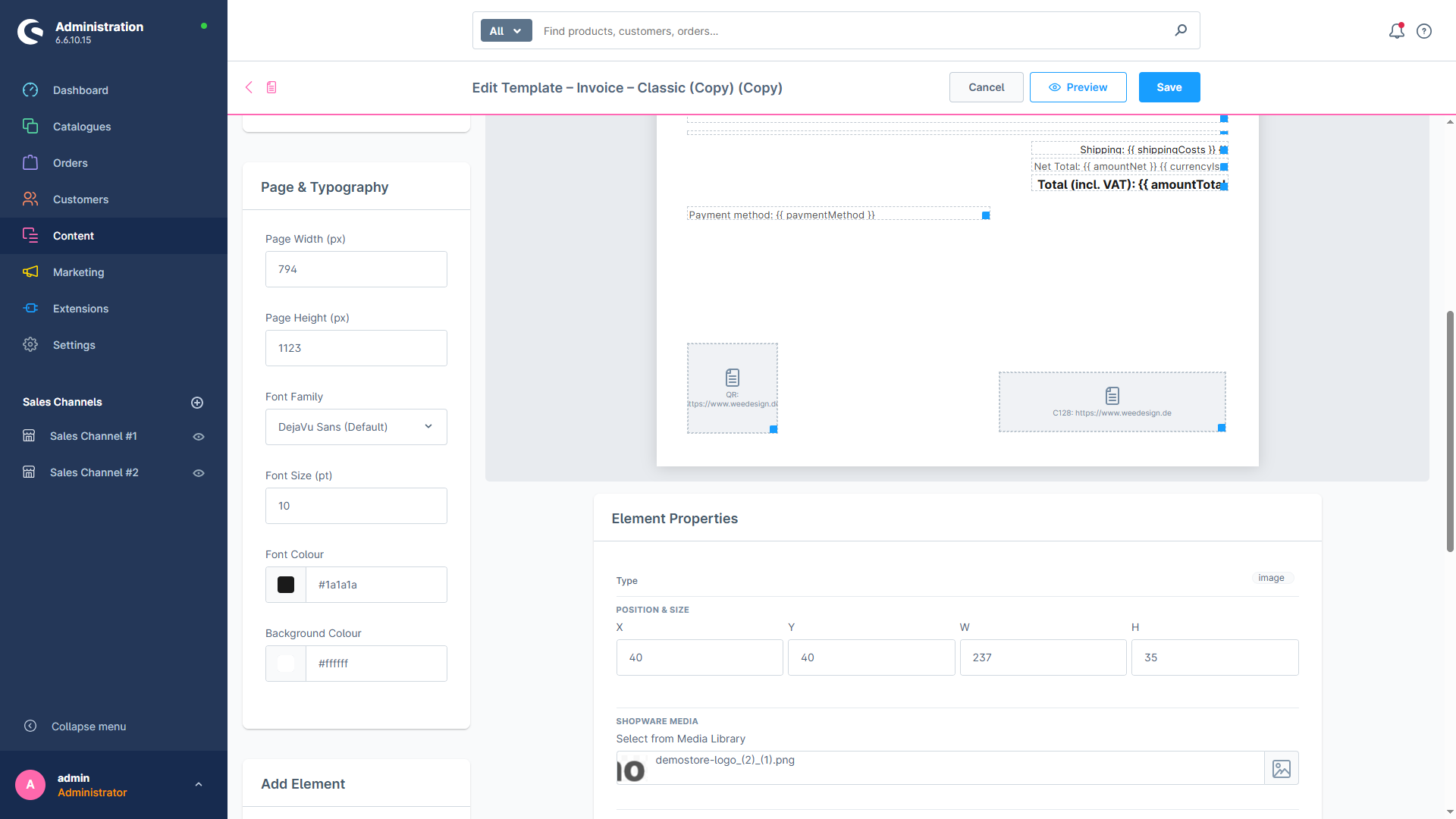

- Set X, Y, width and height in pixels under “Element Properties”
- Style text with size, colour and weight
- Give any element a background colour
- Add your logo from the media library, embedded into the PDF
61 variables for every invoice template
“Insert Variable” opens a searchable list with 61 variables in seven groups: order, page, customer, billing address, shipping address, line item (for table columns) and document config. Placeholders such as {{ orderNumber }} are filled in when the document is created. Company, tax and bank details come from your document settings under Settings > Documents. Amounts always appear with a decimal point and two decimals, for example 119.00, and {{ currencyIso }} adds the currency code.
Multi-page PDF templates with header and footer
- The line items table (one per template) shows the order's line items in the columns you define: header label plus field key, for example quantity or unitPrice
- Colours for the table header, borders and alternate rows

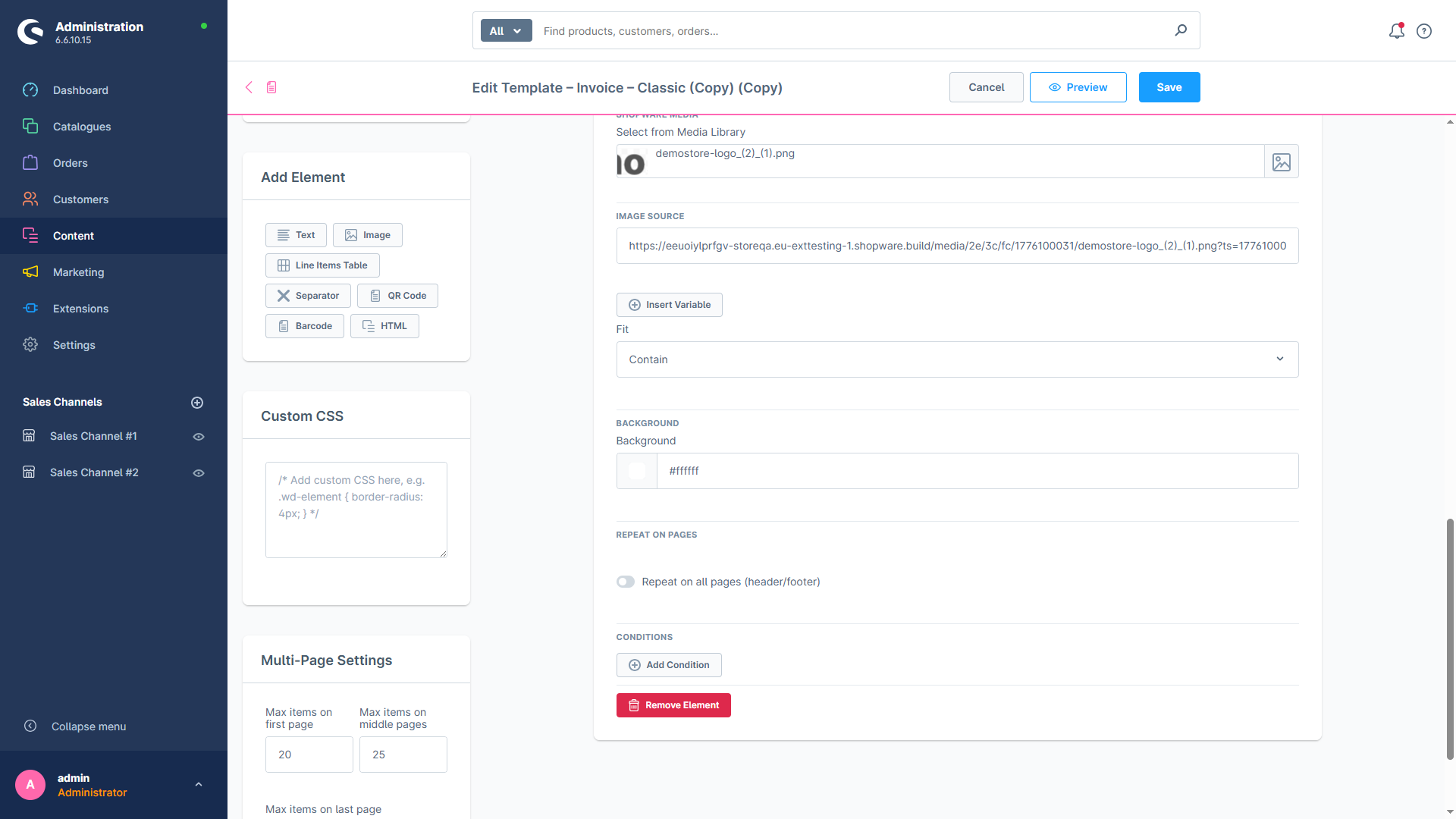

- Under “Multi-Page Settings”, you set the maximum number of items on the first page, the middle pages and the last page (20, 25 and 20 by default); page breaks follow these numbers only, so match them to the height of your table
- Elements with “Repeat on all pages (header/footer)” appear on every page, all others except the line items table on the first page only
- {{ pageNumber }} and {{ totalPages }} print the page numbers
Conditions, QR codes and barcodes in the invoice template
- Conditions show an element only if a field is empty or not empty, equals or does not equal a value, or contains it
- With several conditions, all of them must apply
- QR codes from any text or variable, embedded as an image
- Barcodes in six formats such as Code 128 or EAN-13, for example for the customer number
- HTML element for your own markup with variables, plus custom CSS for the whole template
PDF templates per sales channel and language

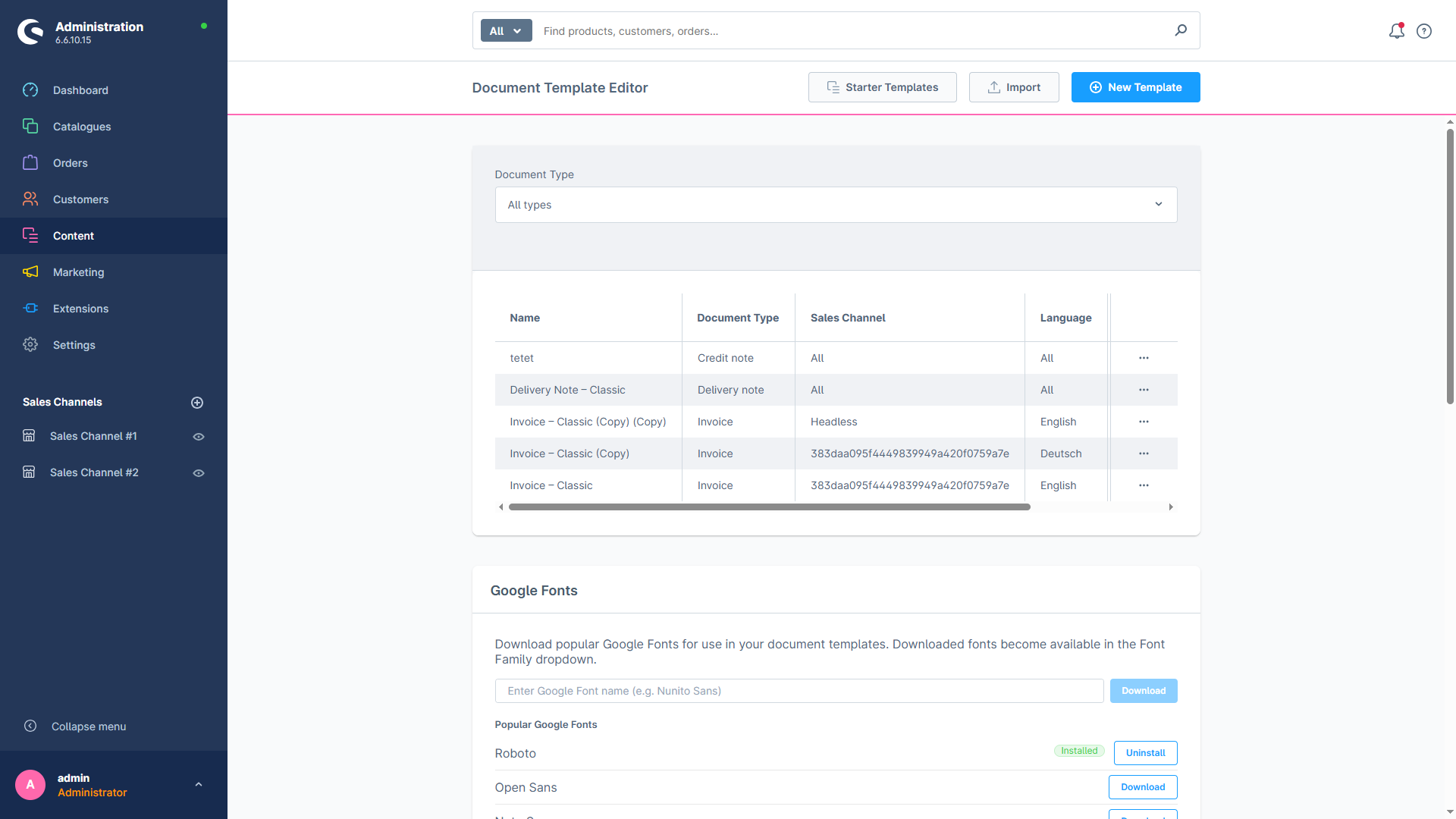

Under “Template Settings”, you assign a template to a sales channel and a language, or keep “All sales channels” and “All languages”. When a document is created, the most specific active template wins: sales channel and language, then sales channel only, then language only, then the template for all sales channels and languages. Activating a template deactivates the previously active template with the same document type, sales channel and language. When you open a document in Settings > Documents, the “PDF Template Editor” card lists the templates of its document type.
Starter templates, fonts and preview for your invoice template

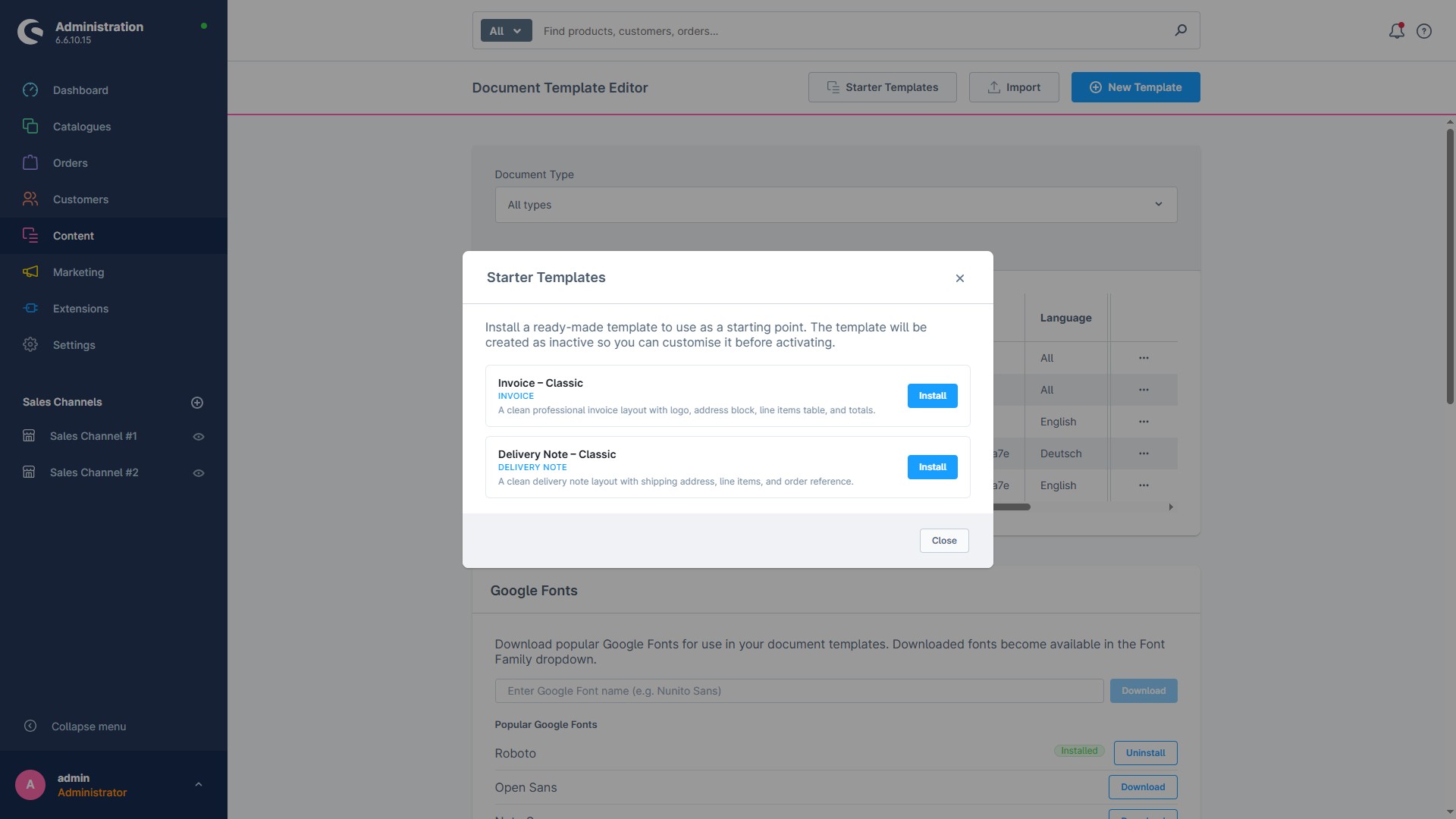

- Four starter templates, one per document type (for example “Invoice – Classic”), installed as inactive
- The starter texts appear in German when your Administration runs in German
- A template created with “New Template” starts with the starter layout of the chosen document type and is active by default; saving it replaces the active template with the same assignment

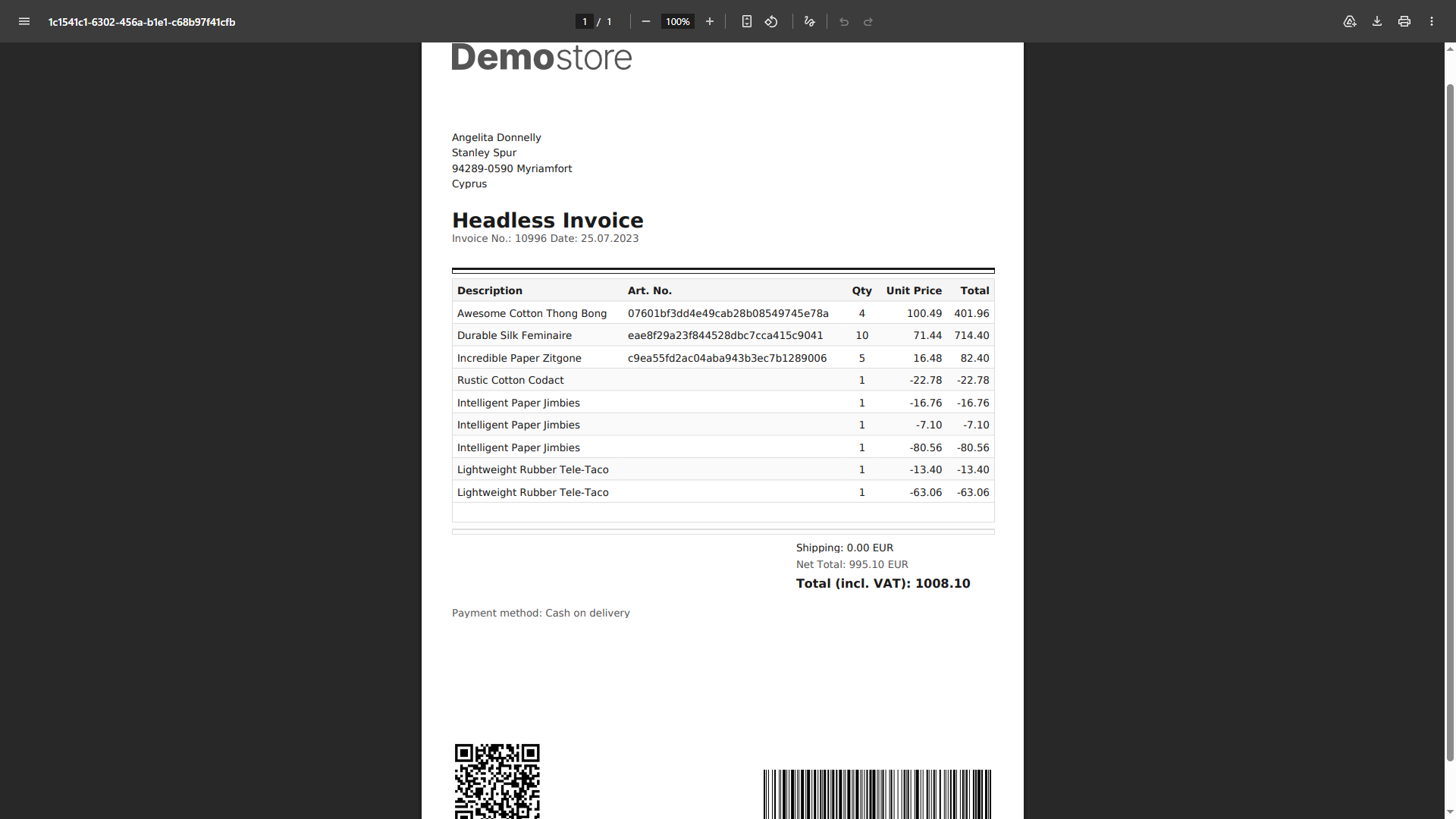

- “Preview” shows your current layout with demo data, or with a real order if you enter its order number; values from your document settings, such as company details, only appear in the real document
- Six built-in fonts, 30 popular Google Fonts with one click or another Google Font by its exact name; your server needs access to GitHub for the download
- Export a template as a JSON file and import it again, for example in another shop; the sales channel and language assignment is not exported, and imports and duplicates start inactive
Details
- Available: English, German
- Latest update: 2 November 2026
- Publication date: 8 August 2026
- Version: 2.0.0
- Category: Administration
Resources
